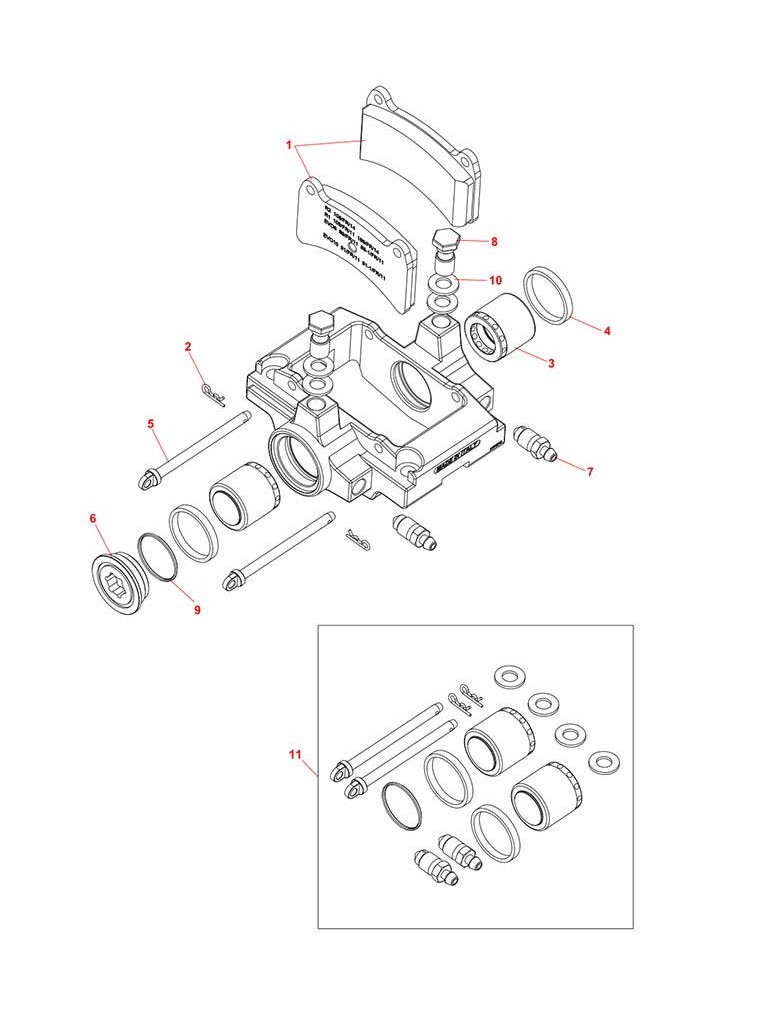

REAR BRAKE CALIPER R1/R2/FRM

1       NT1053NR-08          REAR BRAKE PADS R1/R2 BLACK
2       PP022-05             SAFETY SPLIT PIN
3       INT1049-08         BRAKE CALIPER STEEL PISTON Ø28mm R1/R2
4       INT1076-08         RUBBER Ø28mm SQUARE SECTION
5       INT0421-05         REAR BRAKE CALIPER SAFETY PIN - L.70 mm
6       INT1050-08        BRAKE CALIPER THREADED CAP R1/R2
7       PP030-05           M10X1mm GALVANYZED BREATHER SCREW
8       PP019-05           M10X1mm OIL PIPE CONNECTION SCREW
9       INT1077-08        R1/R2 BRAKE CALIPER RUBBER RING OR3112
10    PF002-05           WASHER Ø14X10X1,5mm
11    INT1124-08        REAR R1 BRAKE CALIPER SPARE PARTS KIT
