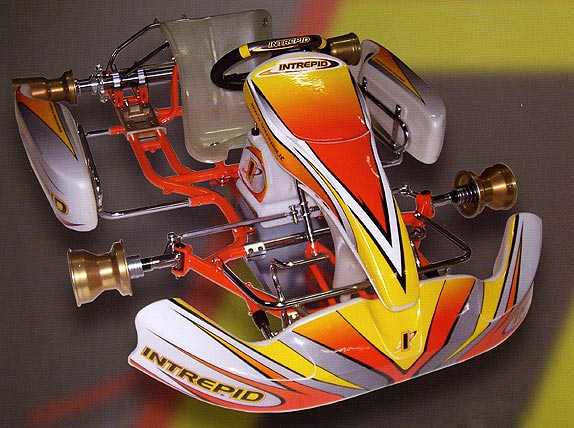

Intrepid Suzuka
125cc Pricing 100cc Pricing

Intrepid Baby Kart
Home page
Freedom Exploded View Freedom Parts
Cruiser Max FRM Exploded View Cruiser Max FRM Parts
Cruiser DD2 Exploded View Cruiser DD2 Parts
Maky Exploded View Maky Parts
World Formula Exploded View World Formula Parts



Back to Top





Explorer View

 Back to Top

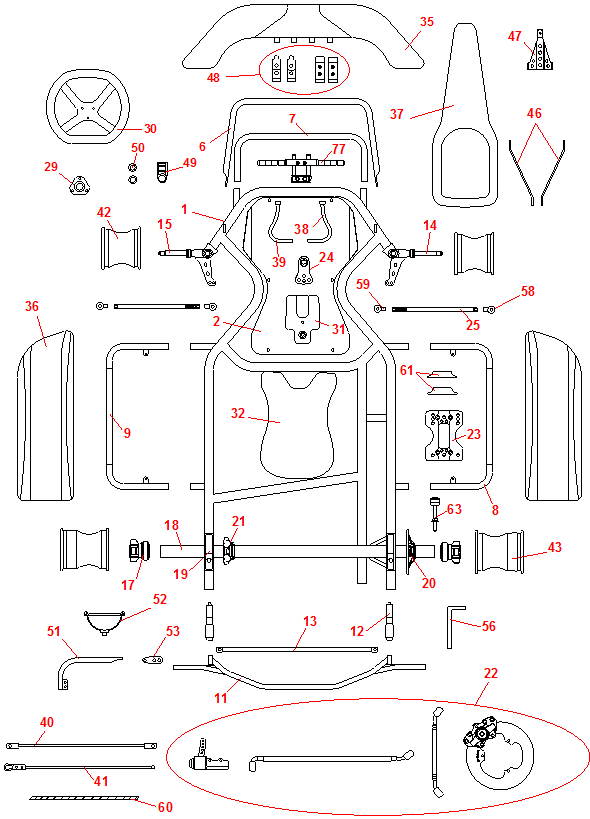

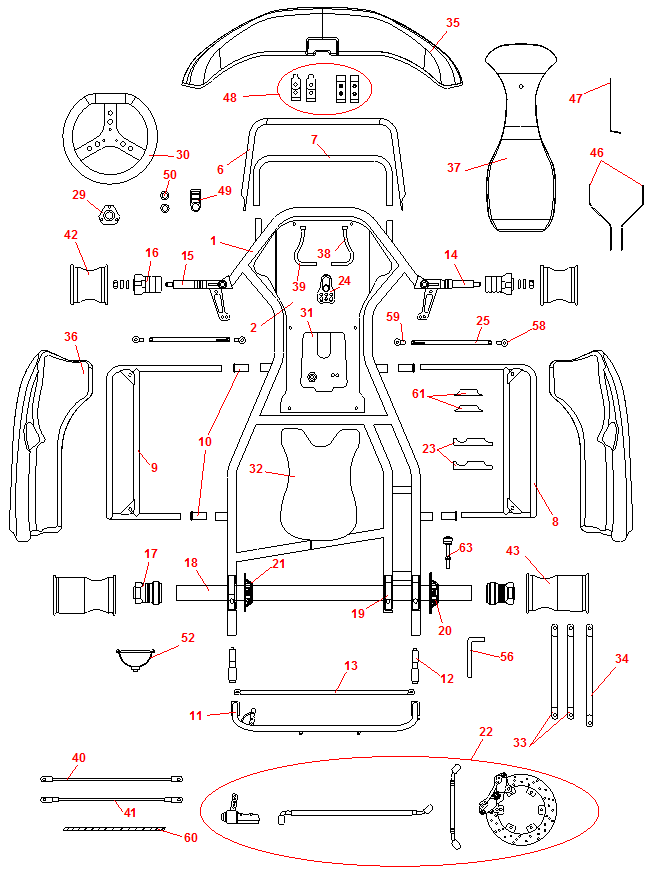

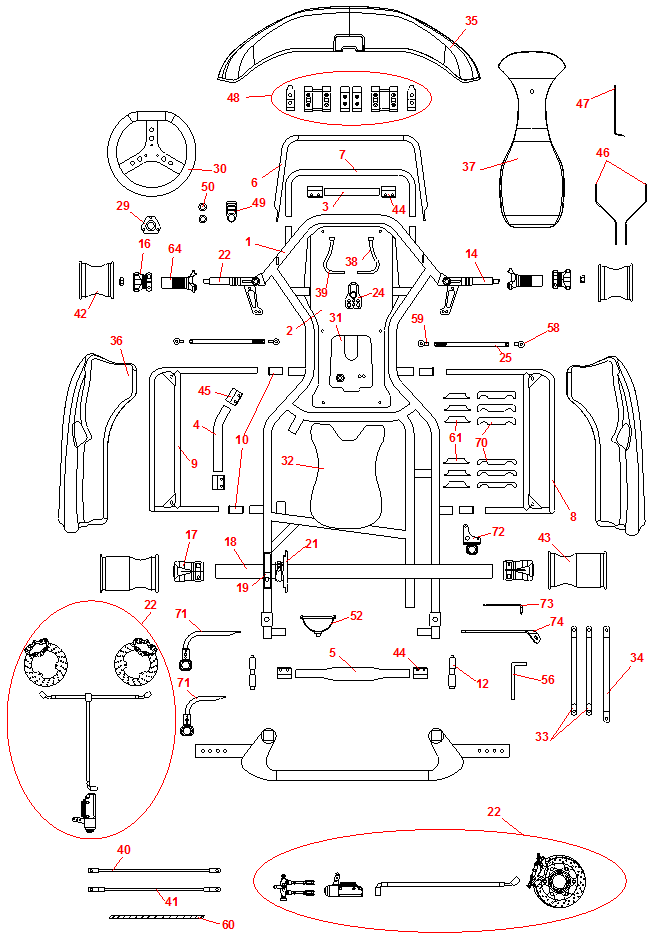

Explorer Exploded View

Back to Top



EXPLORER 125cc:

Pos. CODE DESCRIPTION PRICE
1 CRU125SC-08 FRAME MOD. CRUISER KZ $1,395.00
2 INT0694-06 FLOOR PLATE CRUISER / EXPLORER MOD. 2008 $95.76
3 INT0622-05 STABILIZER FRONT ROD D.28   $36.48
4 INT0355-05 STABILIZER SIDE ROD IV PIPE D.30  $39.41
5 INT0014-05 STABILIZER REAR ROD D.28  $39.41
6 INT0840-06 UPPER FRONT BUMPER - CIK08 / CIK11 $49.40
7 INT0841-06 LOWER FRONT BUMPER - CIK08 / CIK11 $17.63
8 INT0817-06 RIGHT BUMPER MOD. NA2 - CIK11 $94.85
9 INT0818-06 LEFT BUMPER MOD. NA2 - CIK11 $94.85
10 INT0662-06 SIDE BUMPER WASHERS $5.02
11 INT0675-06 REAR BUMPER MOD. 2006 $62.70
12 INT0677TT-06 BUMPER FASTENING KIT Ø30 IN TEFLON $28.50
13 INT0676-06 ANTI-INTRUSION REAR CIK BAR WITH UNIBALL MOD. 2006 $33.06
14 INT0706-06 RIGHT SPINDLE - Ø25 HOLED - PH2 -  125cc. $161.50
15 INT0707-06 LEFT SPINDLE - Ø25 HOLED - PH2 -  125cc. $161.50
16 FR366TT-06 FRONT HUB Ø42x75 - 8mm SLOT- DETACHABLE LEDGE $54.15
17 INT0071-05 REAR HUBS Ø 50 x 95 - AL $81.32
18 INT0831-06 AXLE Ø50 - T2 - 1020 - 100 & 125cc. $212.04
19 INT0549AL-05 BEARING SUPPORT - Ø50 - AL $88.35
21 PD025TT-05 DISK SUPPORT Ø50 FLOATING EVO3ET  6 PIN  $86.18
22 INT0643-06 BRAKING SYSTEM EVO3ET (164/FR/11) - COMPLETE $2,399.13
24 INT0570-05 STEERING COLUMN L. 490 - MOD.  $57.00
25 INT0983-07 CYLINDRIC TIE ROD L. 270mm. INTREPID 2008 MODEL $18.24
29 ST053TT-05 STEERING HUB FOR 125cc. - INTREPID $48.07
30 INT0144-05 INTREPID STEERING WHEEL Ø320 $186.20
31 AR277-05 EXTRACTABLE FUEL TANK - 8,5 lt. $73.72
32 INT089_-06 RESIN SEAT MOD. F6 $140.00
33 AR060-05 SEAT SUPPORT L320 $13.53
34 AR415-05 SEAT SUPPORT L340 $13.53
35 INT0802-06 SPOILER NA" MOD. - CIK11 -  GREY $94.50
36 INT0801-06 RIGHT SIDE BODYWORK - NA2 MOD. - CIK11 - GREY $84.00
INT0800-06 LEFT SIDE BODYWORK - NA2 MOD. - CIK11 - GREY $84.00
37 INT0803-06 NUMBER HOLDER PLATE MOD. NA2 - CIK11 - GREY $37.80
38 AR222-05 PEDAL  - ACCELERATOR $38.00
39 AR097-06 PEDAL  - BRAKE WITH NEW PLAQUE $38.53
40 FR352-05 BRAKE TIE - ROD COMPL. WITH CLIPS AND FORKS L. 340mm $20.03
41 INT0758-06 SAFETY CABLE L.280 - LITTLE FORKS,  CLIPS, EXTENSION $21.28
42 INT0905-06 FRONT WHEELS MOD. INTREPID H. 132 - NEW 2007 $95.76
43 INT0903-06 REAR WHEELS INTREPID H. 212 $104.88
44 AR197ALTT-05 TIGHTENING PIPE BELT - REINFORCED - Ø28 $9.46
45 AR403ALTT-05 TIGHTENING PIPE BELT - REINFORCED - Ø30 $9.46
46 INT0819-06 SUPP. FOR HIGH NUMBER HOLDER PLATE - NA2 - CIK11 $25.54
47 INT1009-07 SUPP. FOR LOW NUMBER HOLDER PLATE NA2 2008 - CIK11 $15.20
48 INT0821-06 COMPLETE SPOILER FASTENING KIT  - MOD NA2 - CIK11 $83.60
49 ST079RS-05 STEERING COLUMN SUPPORT - NYLON - 2 HOLES - RED $7.22
50 ST001TT-05 RING FOR STEERING COLUMN LOCKING $7.41
52 AR181-05 SILENCER HOLDER - COMPLETE $18.43
54 AR331-05 RIGHT LONG SILENCER SUPPORT 100cc $15.96
55 AR332-05 LEFT SHORT SILENCER SUPPORT 100cc $12.77
56 AR457-05 CHAIN GUARD SUPPORT 125cc $7.87
57 GT017TT-05 WATER PUMP SUPPORT Ø30mm $41.76
58 ST110DX-05 RIGHT MALE BALL-JOINT M8 $13.68
59 ST110SX-05 LEFT MALE BALL-JOINT M8 $13.68
60 INT0692-06 PROTECTIVE HOUSING FOR CABLE - TEFLON - Per MT. $9.12
62 INT0815-06 INTREPID NA2 MOD. BODY WORKS STICKERS $149.95
63 AR449-05 CHAIN STRETCHER SUPPORT SCREW $11.67
64 FR038TT-06 FRONT HUB SUPPORT FOR 125cc. - SPINDLE Ø25 $73.53
65 INT0713-06 GEAR LEVER ADAPTER $16.72
66 INT0994-07 GEAR LEVER INTREPID 2008 $47.42
67 INT0993-07 ANATOMICAL HANDLE GEAR LEVEL  2008-TITANIUM $15.09
68 AR101TT-05 INTREPID GEAR ROD  - HEXAGONAL  $16.61
69 AR099-05 CLUTCH LEVER $18.24
76 AR608-06 REAR PLASTIC BUMPER MOD. KG 2008 $330.33
77 INT0992-07 ADJUSTABLE FOOTREST SYSTEM MOD. 2008 $100.70
78 INT0970-07 STABILIZER FRONT BAR Ø28 WHITE NYLON $48.64
83 INT0971-07 FLOOR PLATE STICKERS $41.80

 Back to Top

 EXPLORER 100cc:

CHASSIS EXPLORER 100cc MOD. KF 2008  ( Homologation CIK  # 161/CH/08 )
Pos CODE DESCRIPTION PRICE
1 EXPRO100SC-08 FRAME Ø32mm MOD. EXPLORER KF $1,395.00
2 INT0694-06 FLOOR PLATE CRUISER / EXPLORER MOD. 2008 $95.76
3 INT0622-05 STABILIZER FRONT ROD D.28   $36.48
4 INT0355-05 STABILIZER SIDE ROD IV PIPE D.30 $39.41
5 INT0014-05 STABILIZER REAR ROD D.28  $39.41
6 INT0840-06 NA2 MOD. UPPER FRONT BUMPER - CIK11 $49.40
7 INT0841-06 NA2 LOWER FRONT BUMPER - CIK11 $17.63
8 INT0817-06 RIGHT BUMPER MOD. NA2 - CIK11 $94.85
9 INT0818-06 LEFT BUMPER MOD. NA2 - CIK11 $94.85
10 INT0662-06 SIDE BUMPER WASHERS $5.02
11 INT0675-06 REAR BUMPER MOD. 2006 $62.70
12 INT0678TT-06 BUMPER FASTENING KIT Ø32 IN TEFLON $28.50
13 INT0676-06 ANTI-INTRUSION REAR CIK BAR WITH UNIBALL MOD. 2006 $33.06
14 INT0645DX-06 RIGHT SPINDLE - Ø25 HOLED - PH2 -  100cc. $131.10
15 INT0645SX-06 LEFT SPINDLE - Ø25 HOLED - PH2 -  100cc. $131.10
16 INT0637-06 FRONT HUBS L. 95 - SPINDLE Ø25 - 100cc. - AL $75.24
17 INT0071-05 REAR HUBS Ø 50 x 95 - AL $81.32
18 INT0831-06 AXLE Ø50 - T2 - 1020 - 100 & 125cc. $212.04
19 INT0549AL-05 BEARING SUPPORT - Ø50 - AL $88.35
20 INT0104-05 SPROCKET SUPPORT Ø50 DOUBLE LEDGE - AL $96.03
21 INT0502-05 DISK SUPPORT Ø50 100cc - AL $92.34
22 INT0690-06 REAR BRAKING SYSTEM EVO8 - (89-1/FR/11) $661.20
23 INT0996-07 ENGINE MOUNT - AL - Ø32X92 INTREPID 2008 $114.00
24 INT0570-05 STEERING COLUMN L. 490 - MOD. EXP/CRU $57.00
25 INT0983-07 CYLINDRIC TIE ROD L. 270mm. INTREPID 2008 MODEL $18.24
29 ST052TT-05 STEERING HUB FOR 100cc. $26.75
30 INT0144-05 INTREPID STEERING WHEEL Ø320 $186.20
31 AR277-05 EXTRACTABLE FUEL TANK - 8,5 lt. $73.72
32 INT089_-06 RESIN SEAT MOD. F6 $140.00
33 AR060-05 SEAT SUPPORT L320 $13.53
34 AR415-05 SEAT SUPPORT L340 $13.53
35 INT0802-06 SPOILER NA" MOD. - CIK11 -  GREY $94.50
36 INT0801-06 RIGHT SIDE BODYWORK - NA2 MOD. - CIK11 - GREY $84.00
INT0800-06 LEFT SIDE BODYWORK - NA2 MOD. - CIK11 - GREY $84.00
37 INT0803-06 NUMBER HOLDER PLATE MOD. NA2 - CIK11 - GREY $37.80
38 AR222-05 PEDAL  - ACCELERATOR $38.00
39 AR097-06 PEDAL  - BRAKE WITH NEW PLAQUE $38.53
40 FR354-05 BRAKE TIE - ROD COMPL. WITH CLIPS AND FORKS L. 410mm $20.03
41 INT0691-06 SAFETY CABLE L.350 - LITTLE FORKS, CLIPS, EXTENSION $21.55
42 INT0905-06 FRONT WHEELS MOD. INTREPID H. 132 - NEW 2007 $95.76
43 INT0903-06 REAR WHEELS INTREPID H. 212 $104.88
44 AR197ALTT-05 TIGHTENING PIPE BELT - REINFORCED - Ø28 $9.46
45 AR403ALTT-05 TIGHTENING PIPE BELT - REINFORCED - Ø30 $9.46
46 INT0819-06 SUPP. FOR HIGH NUMBER HOLDER PLATE - NA2 - CIK11 $25.54
47 INT1009-07 SUPP. FOR LOW NUMBER HOLDER PLATE NA2 2008 - CIK11 $15.20
48 INT0821-06 COMPLETE SPOILER FASTENING KIT  - MOD NA2 - CIK11 $83.60
49 ST079RS-05 STEERING COLUMN SUPPORT - NYLON - 2 HOLES - RED $7.22
50 ST001TT-05 RING FOR STEERING COLUMN LOCKING $7.41
51 AR334-05 BENT SILENCER HOLDER - CHROMED $57.46
52 AR181-05 SILENCER HOLDER - COMPLETE $18.43
53 AR455-05 SILENCER HOLDER PLATE SUPPORT $6.57
54 AR331-05 RIGHT LONG SILENCER SUPPORT 100cc $15.96
55 AR332-05 LEFT SHORT SILENCER SUPPORT 100cc $12.77
56 AR086-05 CHAIN GUARD SUPPORT 100cc $7.56
57 GT018TT-05 WATER PUMP SUPPORT Ø32mm $41.76
58 ST110DX-05 RIGHT MALE BALL-JOINT M8 $13.68
59 ST110SX-05 LEFT MALE BALL-JOINT M8 $13.68
60 INT0692-06 PROTECTIVE HOUSING FOR CABLE - TEFLON - Per MT. $9.12
61 PM031-05 UNIVERSAL ENGINE MOUNT BRACKETS $17.10
62 INT0815-06 INTREPID NA2 MOD. BODY WORKS STICKERS $149.95
63 AR449-05 CHAIN STRETCHER  $11.67
76 AR608-06 REAR PLASTIC BUMPER MOD. KG'08 $330.33
77 INT0992-07 ADJUSTABLE FOOTREST SYSTEM MOD. 2008 $100.70
78 INT0970-07 STABILIZER FRONT BAR Ø28 WHITE NYLON $48.64
83 INT0971-07 FLOOR PLATE STICKERS $41.80

Back to Top



Silverstone View

Back to Top

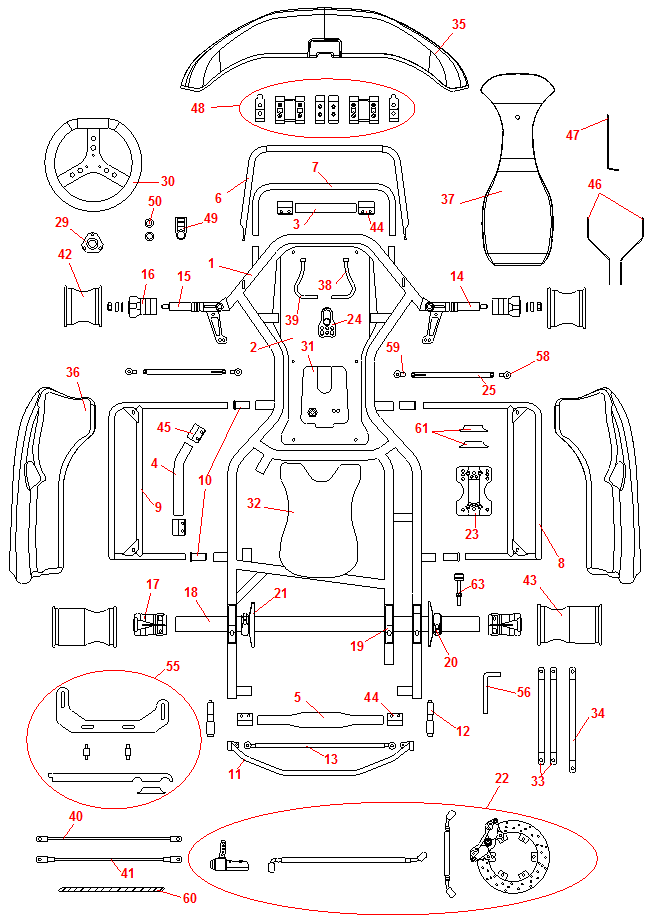

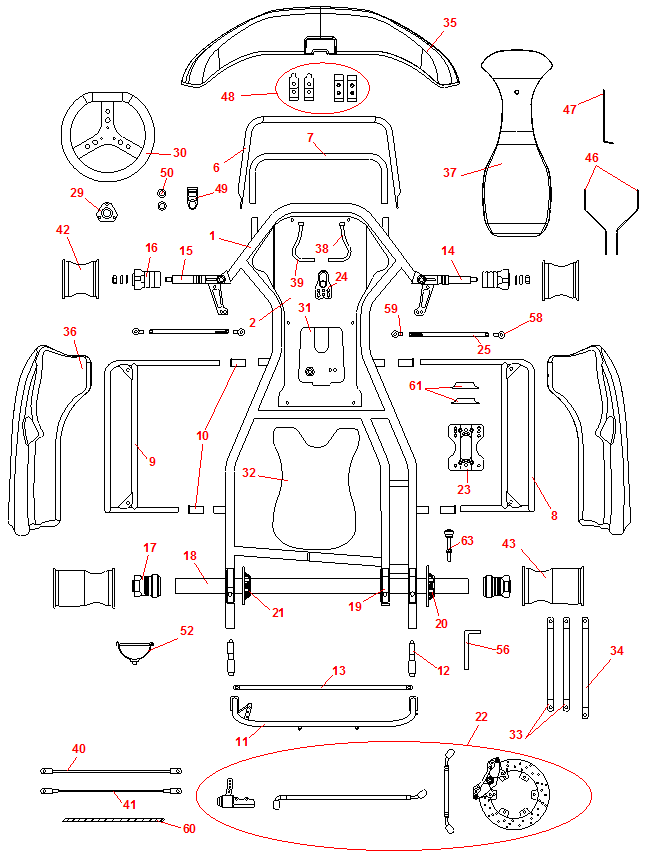

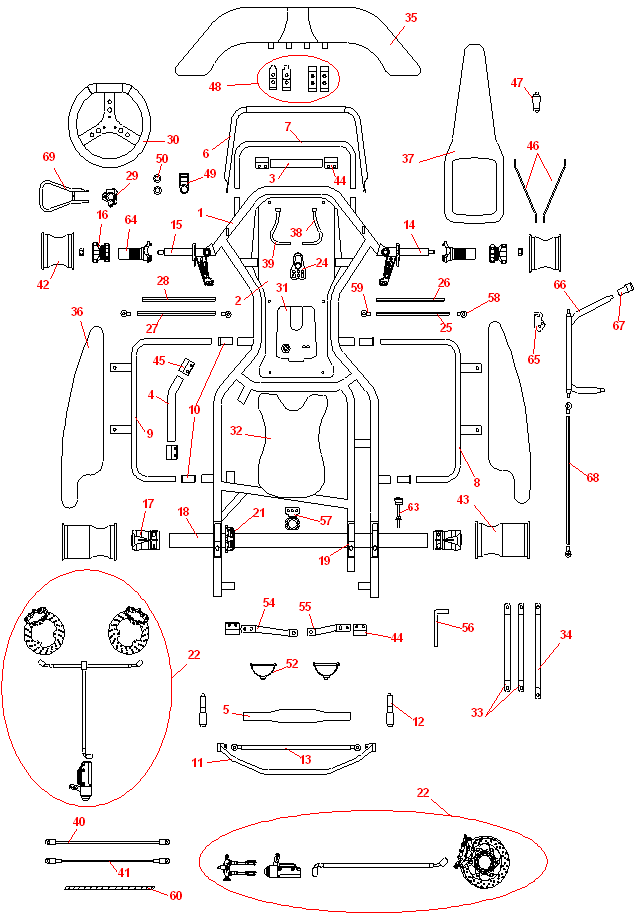

Silverstone Exploded View

Back to Top



SILVERSTONE 125cc:

CHASSIS SILVERSTONE 125cc-06 STD  (HOMOL N. 162/CH/11)
POS. COD. DESCRIPTION PRICE
1 SILV125SC-06 FRAME Ø32mm MOD. SILVERSTONE 125cc 2006
2 INT0633-05 FLOOR PLATE MOD. SILVERSTONE PRO - MARKED $88.65
3 INT0622-05 STABILIZER FRONT ROD D.28  CRU/EXP/SIL. $36.48
4 INT0013K STABILIZER SIDE ROD IV PIPE D.28 SILVERSTONE $36.94
5 INT0014-05 STABILIZER REAR ROD D.28 CRU/EXP/SIL/SUZ $39.41
6 AR350-05 UPPER FRONT BUMPER CIK08 $29.45
7 AR349-05 LOWER FRONT BUMPER CIK08 $13.22
8 AR345-05 RIGHT BUMPER MOD. UNICO $60.31
9 AR346-05 LEFT BUMPER MOD. UNICO $60.31
10 INT0662-06 SIDE BUMPER WASHERS $5.02
11 INT0675-06 REAR BUMPER MOD. 2006 $36.94
12 INT0678-06 BUMPER FASTENING KIT Ø32 IN TEFLON $18.62
13 INT0676-06 ANTI-INTRUSION REAR CIK BAR WITH UNIBALL MOD. 2006 $33.06
14 INT0706-06 RIGHT SPINDLE - Ø25 HOLED - PH2 -  125cc.             (17mm;     25mm) ($105.87;     $161.50)
15 INT0707-06 LEFT SPINDLE - Ø25 HOLED - PH2 -  125cc.               (17mm;     25mm) ($105.87;      $161.50)
16 INT0715-06 FRONT HUB L. 75 - SPINDLE Ø25 - 125cc. - AL $63.84
17 INT0071-05 REAR HUBS Ø 50 x 95 - AL $71.14
18 INT0004-05 AXLE Ø50 - T2-1040-125cc                                           (SKM;     INTREPID) ($108.19;      $223.44)
19 INT0549AL-05 BEARING SUPPORT - Ø50 - AL $70.68
21 PD025-05 DISK SUPPORT Ø50 FLOATING EVO3ET 6PIN - ERGAL $73.87
22 INT0643-06 BRAKING SYSTEM EVO3ET (164/FR/11) - COMPLETE $1,641.87
24 INT0097-05 STEERING COLUMN L. 470 - MOD. SILVERSTONE $44.31
25 INT0016-05 RIGHT STEERING TIE ROD - L. 275 - MARKED $18.80
26 INT0630-06 RIGHT STEERING TIE ROD - L. 265 - MARKED $18.80
27 INT0629-06 LEFT STEERING TIE ROD - L. 270 - MARKED $18.80
28 INT0631-06 LEFT STEERING TIE ROD - L. 280 - MARKED $18.80
29 INT075-05 STEERING HUB FOR 125cc. - INTREPID $33.78
30 INT0144-05 INTREPID STEERING WHEEL Ø320 $158.00
31 AR277-05 EXTRACTABLE FUEL TANK - 8,5 lt. $53.96
32 AR444_-05 FIBERGLASS SEAT HIGH BACK MOD. FT RACING $120.78
33 AR060-05 SEAT SUPPORT L320 $9.14
34 AR415-05 SEAT SUPPORT L340 $9.14
35 AR305PR-05 SPOILER CIK 08 $71.37
36 AR312PR-05 SIDE BODYWORK RG/LF CIK 08 MOD. UNICO $40.08
37 AR298PR-05 NUMBER HOLDER PLATE - COMPLETE MOD. UNICO $49.41
38 INT0091-05 RIGHT PEDAL INTREPID  - ACCELERATOR $28.46
39 INT0092-05 LEFT PEDAL INTREPID - BRAKE $29.26
40 FR203-05 COMPLETE BRAKE TIE - ROD L. 340mm COMPLETO $15.01
41 INT0215-06 SAFETY CABLE L.280 - LITTLE FORKS,  CLIPS, EXTENSION $16.15
42 CE089MGN-06 FRONT WHEELS Ø132 - SPOKED - BLACK - MG $60.00
43 CE091MGN-06 REAR WHEELS Ø212 - SPOKED - BLACK - MG $60.00
44 AR197ALTT-05 TIGHTENING PIPE BELT - REINFORCED - Ø28 $7.98
46 AR014-05 SUPPORT KIT FOR HIGH NUMBER HOLDER PLATE $11.78
47 AR400-05 SUPPORT KIT FOR LOW NUMBER HOLDER PLATE - TEFLON $22.04
48 AR019-05 SPOILER FASTENING KIT - COMPLETE - CIK 08 $38.87
49 AR079RS-05 STEERING COLUMN SUPPORT - NYLON - 2 HOLES - RED $4.94
50 ST001-05 RING FOR STEERING COLUMN LOCKING $4.74
52 AR181-05 SILENCER HOLDER - COMPLETE $27.59
54 AR331-05 RIGHT LONG SILENCER SUPPORT 100cc $14.82
55 AR332-05 LEFT SHORT SILENCER SUPPORT 100cc $12.77
56 AR457-05 CHAIN GUARD SUPPORT 125cc $5.66
57 GT018-05 WATER PUMP SUPPORT Ø32mm $28.46
58 ST110DX-05 RIGHT MALE BALL-JOINT M8 $14.44
59 ST110SX-05 LEFT MALE BALL-JOINT M8 $14.44
60 INT0692-06 PROTECTIVE FOR CABLE- TEFLON $9.12
62 INT0037-05 INTREPID BODY WORKS STICKERS $119.95
63 AR449-05 CHAIN STRETCHER SUPPORT SCREW $8.74
64 FR370-06 FRONT HUB SUPPORT FOR 125cc. - SPINDLE Ø25 $102.22
65 INT0713-06 GEAR LEVER ADAPTER $8.55
66 INT0062-05 INTREPID GEAR LEVER $35.57
67 AR104-05 INTREPID GEAR LEVER HANDLE $10.30
68 AR101-05 INTREPID GEAR ROD  - HEXAGONAL  $11.32
69 AR099-05 CLUTCH LEVER $16.68

Back to Top



SILVERSTONE PRO 100cc:

CHASSIS SILVERSTONE PRO 100cc-06 - STD (HOMOL N. 162/CH/08)
POS. COD. DESCRIPTION PRICE
1 SILV100SC-06 FRAME Ø32mm MOD. SILVERSTONE 100cc 2006
2 INT0633-05 FLOOR PLATE MOD. SILVERSTONE PRO - MARKED $88.65
3 INT0622-05 STABILIZER FRONT ROD D.28  CEU/EXP/SIL. $36.48
4 INT0013K STABILIZER SIDE ROD IV PIPE D.28 SILV. $36.94
5 INT0014-05 STABILIZER REAR ROD D.28 CRU/EXP/SIL/SUZ $39.41
6 AR350-05 UPPER FRONT BUMPER CIK08 $29.45
7 AR349-05 LOWER FRONT BUMPER CIK08 $13.22
8 AR345-05 RIGHT BUMPER MOD. UNICO $60.31
9 AR346-05 LEFT BUMPER MOD. UNICO $60.31
10 INT0662-06 SIDE BUMPER WASHERS $5.02
11 INT0675-06 REAR BUMPER MOD. 2006 $36.94
12 INT0678-06 BUMPER FASTENING KIT Ø32 IN TEFLON $18.62
13 INT0676-06 ANTI-INTRUSION REAR CIK BAR WITH UNIBALL MOD. 2006 $33.06
14 INT0645DX-06 RIGHT SPINDLE - Ø25 HOLED - PH2 -  100cc.               (17mm;      25mm) ($ 93.56;    $131.10)
15 INT0645SX-06 LEFT SPINDLE - Ø25 HOLED - PH2 -  100cc.                 (17mm;      25mm) ($ 93.56;    $131.10)
16 INT0637-06 FRONT HUBS L. 95 - SPINDLE Ø25 - 100cc. - AL $65.97
17 INT0071-05 REAR HUBS Ø 50 x 95 - AL $71.14
18 INT0002-05 AXLE Ø50 - T2 - 1020 - 100cc.                                      (SKM;    INTREPID) ($ 108.19;    $223.14)
19 INT0549AL-05 BEARING SUPPORT - Ø50 - AL $70.68
20 INT0104-05 SPROCKET SUPPORT Ø50 DOUBLE LEDGE - AL $96.03
21 INT0502-05 DISK SUPPORT Ø50 100cc - AL $73.87
22 INT0690-06 BRAKING SYSTEM EVO8 - REAR - (89-1/FR/11) $575.32
23 PM030-05 HOLED ENGINE MOUNT 30X92 - HQ - COL. GOLD - MG $121.60
24 INT0097-05 STEERING COLUMN L. 470 - MOD. SILVERSTONE $44.31
25 INT0016-05 RIGHT STEERING TIE ROD - L. 275 $18.80
26 INT0630-06 RIGHT STEERING TIE ROD - L. 265 $18.80
27 INT0629-06 LEFT STEERING TIE ROD - L. 270 $18.80
28 INT0631-06 LEFT STEERING TIE ROD - L. 280 $18.80
29 INT0074-05 STEERING HUB FOR 100cc. - INTREPID $15.31
30 INT0144-05 INTREPID STEERING WHEEL Ø320 $158.00
31 AR277-05 EXTRACTABLE FUEL TANK - 8,5 lt. $53.96
32 AR444_-05 FIBERGLASS SEAT HIGH BACK MOD. FT RACING $120.78
33 AR060-05 SEAT SUPPORT L320 $9.14
34 AR415-05 SEAT SUPPORT L340 $9.14
35 AR305PR-05 SPOILER CIK 08 $71.37
36 AR312PR-05 SIDE BODYWORK RG/LF CIK 08 MOD. UNICO $40.08
37 AR298PR-05 NUMBER HOLDER PLATE - COMPLETE MOD. UNICO $49.41
38 AR097DX-06 PEDAL  - ACCELERATOR $28.46
39 AR097SX-06 PEDAL  - BRAKE WITH NEW PLAQUE $29.26
40 FR354-06 BRAKE TIE - ROD COMPL. WITH CLIPS AND FORKS L. 410mm $15.01
41 INT0691-06 SAFETY CABLE L.350 - LITTLE FORKS,  CLIPS, EXTENSION $16.15
42 CE089MGN-06 FRONT WHEELS Ø132 - SPOKED - BLACK - MG $60.00
43 CE091MGN-06 REAR WHEELS Ø212 - SPOKED - BLACK - MG $60.00
44 AR197ALTT-05 TIGHTENING PIPE BELT - REINFORCED - Ø28 $7.98
46 AR014-05 SUPPORT KIT FOR HIGH NUMBER HOLDER PLATE $11.78
47 AR400-05 SUPPORT KIT FOR LOW NUMBER HOLDER PLATE - TEFLON $22.04
48 AR019-05 SPOILER FASTENING KIT - COMPLETE - CIK 08 $38.87
49 AR079RS-05 STEERING COLUMN SUPPORT - NYLON - 2 HOLES - RED $4.94
50 ST001-05 RING FOR STEERING COLUMN LOCKING $4.74
51 AR334-05 BENT SILENCER HOLDER - CHROMED $47.88
52 AR181-05 SILENCER HOLDER - COMPLETE $27.59
53 AR455-05 SILENCER HOLDER PLATE SUPPORT $4.94
54 AR331-05 RIGHT LONG SILENCER SUPPORT 100cc $14.82
55 AR332-05 LEFT SHORT SILENCER SUPPORT 100cc $12.77
56 AR086-05 CHAIN GUARD SUPPORT 100cc $5.66
57 GT018-05 WATER PUMP SUPPORT Ø32mm $28.46
58 ST110DX-05 RIGHT MALE BALL-JOINT M8 $14.44
59 ST110SX-05 LEFT MALE BALL-JOINT M8 $14.44
60 INT0692-06 PROTECTIVE FOR CABLE- TEFLON $9.12
61 PM031TT-05 UNIVERSAL ENGINE MOUNT BRACKETS $11.78
62 INT0037-05 INTREPID BODY WORKS STICKERS $119.95
63 AR449-05 CHAIN STRETCHER $8.74

Back to Top



Cruiser View

Back to Top



Cruiser Exploded View

Back to Top



CRUISER 125cc:

CHASSIS CRUISER 125cc MOD. KZ 2008 ( Homologation CIK  # 88/CH/11)
Pos. CODE DESCRIPTION PRICE
1 CRU125SC-08 FRAME MOD. CRUISER KZ $1,395.00
2 INT0694-06 FLOOR PLATE CRUISER / EXPLORER MOD. 2008 $95.76
3 INT0622-05 STABILIZER FRONT ROD D.28   $36.48
4 INT0355-05 STABILIZER SIDE ROD IV PIPE D.30  $39.41
5 INT0014-05 STABILIZER REAR ROD D.28  $39.41
6 INT0840-06 UPPER FRONT BUMPER - CIK08 / CIK11 $49.40
7 INT0841-06 LOWER FRONT BUMPER - CIK08 / CIK11 $17.63
8 INT0817-06 RIGHT BUMPER MOD. NA2 - CIK11 $94.85
9 INT0818-06 LEFT BUMPER MOD. NA2 - CIK11 $94.85
10 INT0662-06 SIDE BUMPER WASHERS $5.02
11 INT0675-06 REAR BUMPER MOD. 2006 $62.70
12 INT0677TT-06 BUMPER FASTENING KIT Ø30 IN TEFLON $28.50
13 INT0676-06 ANTI-INTRUSION REAR CIK BAR WITH UNIBALL MOD. 2006 $33.06
14 INT0706-06 RIGHT SPINDLE - Ø25 HOLED - PH2 -  125cc. $161.50
15 INT0707-06 LEFT SPINDLE - Ø25 HOLED - PH2 -  125cc. $161.50
16 FR366TT-06 FRONT HUB Ø42x75 - 8mm SLOT- DETACHABLE LEDGE $54.15
17 INT0071-05 REAR HUBS Ø 50 x 95 - AL $81.32
18 INT0831-06 AXLE Ø50 - T2 - 1020 - 100 & 125cc. $212.04
19 INT0549AL-05 BEARING SUPPORT - Ø50 - AL $88.35
21 PD025TT-05 DISK SUPPORT Ø50 FLOATING EVO3ET  6 PIN  $86.18
22 INT0643-06 BRAKING SYSTEM EVO3ET (164/FR/11) - COMPLETE $2,399.13
24 INT0570-05 STEERING COLUMN L. 490 - MOD.  $57.00
25 INT0983-07 CYLINDRIC TIE ROD L. 270mm. INTREPID 2008 MODEL $18.24
29 ST053TT-05 STEERING HUB FOR 125cc. - INTREPID $48.07
30 INT0144-05 INTREPID STEERING WHEEL Ø320 $186.20
31 AR277-05 EXTRACTABLE FUEL TANK - 8,5 lt. $73.72
32 INT089_-06 RESIN SEAT MOD. F6 $140.00
33 AR060-05 SEAT SUPPORT L320 $13.53
34 AR415-05 SEAT SUPPORT L340 $13.53
35 INT0802-06 SPOILER NA" MOD. - CIK11 -  GREY $94.50
36 INT0801-06 RIGHT SIDE BODYWORK - NA2 MOD. - CIK11 - GREY $84.00
INT0800-06 LEFT SIDE BODYWORK - NA2 MOD. - CIK11 - GREY $84.00
37 INT0803-06 NUMBER HOLDER PLATE MOD. NA2 - CIK11 - GREY $37.80
38 AR222-05 PEDAL  - ACCELERATOR $38.00
39 AR097-06 PEDAL  - BRAKE WITH NEW PLAQUE $38.53
40 FR352-05 BRAKE TIE - ROD COMPL. WITH CLIPS AND FORKS L. 340mm $20.03
41 INT0758-06 SAFETY CABLE L.280 - LITTLE FORKS,  CLIPS, EXTENSION $21.28
42 INT0905-06 FRONT WHEELS MOD. INTREPID H. 132 - NEW 2007 $95.76
43 INT0903-06 REAR WHEELS INTREPID H. 212 $104.88
44 AR197ALTT-05 TIGHTENING PIPE BELT - REINFORCED - Ø28 $9.46
45 AR403ALTT-05 TIGHTENING PIPE BELT - REINFORCED - Ø30 $9.46
46 INT0819-06 SUPP. FOR HIGH NUMBER HOLDER PLATE - NA2 - CIK11 $25.54
47 INT1009-07 SUPP. FOR LOW NUMBER HOLDER PLATE NA2 2008 - CIK11 $15.20
48 INT0821-06 COMPLETE SPOILER FASTENING KIT  - MOD NA2 - CIK11 $83.60
49 ST079RS-05 STEERING COLUMN SUPPORT - NYLON - 2 HOLES - RED $7.22
50 ST001TT-05 RING FOR STEERING COLUMN LOCKING $7.41
52 AR181-05 SILENCER HOLDER - COMPLETE $18.43
54 AR331-05 RIGHT LONG SILENCER SUPPORT 100cc $15.96
55 AR332-05 LEFT SHORT SILENCER SUPPORT 100cc $12.77
56 AR457-05 CHAIN GUARD SUPPORT 125cc $7.87
57 GT017TT-05 WATER PUMP SUPPORT Ø30mm $41.76
58 ST110DX-05 RIGHT MALE BALL-JOINT M8 $13.68
59 ST110SX-05 LEFT MALE BALL-JOINT M8 $13.68
60 INT0692-06 PROTECTIVE HOUSING FOR CABLE - TEFLON - Per MT. $9.12
62 INT0815-06 INTREPID NA2 MOD. BODY WORKS STICKERS $149.95
63 AR449-05 CHAIN STRETCHER SUPPORT SCREW $11.67
64 FR038TT-06 FRONT HUB SUPPORT FOR 125cc. - SPINDLE Ø25 $73.53
65 INT0713-06 GEAR LEVER ADAPTER $16.72
66 INT0994-07 GEAR LEVER INTREPID 2008 $47.42
67 INT0993-07 ANATOMICAL HANDLE GEAR LEVEL  2008-TITANIUM $15.09
68 AR101TT-05 INTREPID GEAR ROD  - HEXAGONAL  $16.61
69 AR099-05 CLUTCH LEVER $18.24
76 AR608-06 REAR PLASTIC BUMPER MOD. KG 2008 $330.33
77 INT0992-07 ADJUSTABLE FOOTREST SYSTEM MOD. 2008 $100.70
78 INT0970-07 STABILIZER FRONT BAR Ø28 WHITE NYLON $48.64
83 INT0971-07 FLOOR PLATE STICKERS $41.80

Back to Top

CHASSIS CRUISER 100cc MOD. KF 2008 ( Homologation CIK  # 88/CH/11 )
Pos. CODE DESCRIPTION PRICE
1 CRU100SC-08 FRAME Ø30MM MOD. CRUISER KF $1,395.00
2 INT0694-06 FLOOR PLATE CRUISER / EXPLORER MOD. 2008 $95.76
3 INT0622-05 STABILIZER FRONT ROD D.28   $36.48
4 INT0355-05 STABILIZER SIDE ROD IV PIPE D.30  $39.41
5 INT0014-05 STABILIZER REAR ROD D.28  $39.41
6 INT0840-06 NA2 MOD. UPPER FRONT BUMPER - CIK11 $49.40
7 INT0841-06 NA2 LOWER FRONT BUMPER - CIK11 $17.63
8 INT0817-06 RIGHT BUMPER MOD. NA2 - CIK11 $94.85
9 INT0818-06 LEFT BUMPER MOD. NA2 - CIK11 $94.85
10 INT0662-06 SIDE BUMPER WASHERS - TEFLON $5.02
11 INT0675-06 REAR BUMPER MOD. 2006 $62.70
12 INT0677TT-06 BUMPER FASTENING KIT Ø30 IN TEFLON $28.50
13 INT0676-06 ANTI-INTRUSION REAR CIK BAR WITH UNIBALL MOD. 2006 $33.06
14 INT0645DX-06 RIGHT SPINDLE - Ø25 HOLED - PH2 -  100cc. $131.10
15 INT0645SX-06 LEFT SPINDLE - Ø25 HOLED - PH2 -  100cc. $131.10
16 INT0637-06 FRONT HUBS L. 95 - SPINDLE Ø25 - 100cc. AL $75.24
17 INT0071-05 REAR HUBS Ø 50 x 95 - AL $81.32
18 INT0831-06 AXLE Ø50 - T2 - 1020 - 100 & 125cc. $212.04
19 INT0549AL-05 BEARING SUPPORT - Ø50 - AL $88.35
20 INT0104-05 SPROCKET SUPPORT Ø50 DOUBLE LEDGE - AL $96.03
21 INT0502-05 DISK SUPPORT Ø50 100cc - AL $92.34
22 INT0690-06 REAR BRAKING SYSTEM EVO8 - (89-1/FR/11) $661.20
23 INT0995-07 ENGINE MOUNT - AL - Ø30X92mm. INTREPID 2008 $114.00
24 INT0570-05 STEERING COLUMN L. 490 - MOD. EXP/CRU $57.00
25 INT0983-07 SOLID TIE RODS L. 270 INTREPID 2008 $18.24
29 ST052TT-06 STEERING HUB FOR 100cc.  $26.75
30 INT0144-05 INTREPID STEERING WHEEL Ø320 $186.20
31 AR277-05 EXTRACTABLE FUEL TANK - 8,5 lt. $73.72
32 INT089_-06 FIBERGLASS SEAT HIGH BACK MOD. FT RACING $140.00
33 AR060-05 SEAT SUPPORT L320 $13.53
34 AR415-05 SEAT SUPPORT L340 $13.53
35 INT0802-06 SPOILER NA" MOD. - CIK11 -  GREY $94.50
36 INT0801-06 RIGHT SIDE BODYWORK - NA2 MOD. - CIK11 - GREY $84.00
INT0800-06 LEFT SIDE BODYWORK - NA2 MOD. - CIK11 - GREY $84.00
37 INT0803-06 NUMBER HOLDER PLATE MOD. NA2 - CIK11 - GREY $37.80
38 AR222-05 PEDAL  - ACCELERATOR $38.00
39 AR097-06 PEDAL  - BRAKE WITH NEW PLAQUE $38.53
40 FR354-05 BRAKE TIE - ROD COMPL. WITH CLIPS AND FORKS L. 410mm $20.03
41 INT0691-06 SAFETY CABLE L.350 - LITTLE FORKS, CLIPS, EXTENSION $21.55
42 INT0905-06 FRONT WHEELS H. 132 MG INTREPID  $95.76
43 INT0903-06 REAR  WHEELS H. 212 MG INTREPID $104.88
44 AR197ALTT-05 TIGHTENING PIPE BELT - REINFORCED - Ø28 $9.46
45 AR403ALTT-05 TIGHTENING PIPE BELT - REINFORCED - Ø30 $9.46
46 INT0819-06 SUPP. FOR HIGH NUMBER HOLDER PLATE - NA2 - CIK11 $25.54
47 INT1009-07 SUPP. FOR LOW NUMBER HOLDER PLATE NA2 2008 - CIK11 $15.20
48 INT0821-06 COMPLETE SPOILER FASTENING KIT  - MOD NA2 - CIK11 $83.60
49 ST079RS-05 STEERING COLUMN SUPPORT - NYLON - 2 HOLES - RED $7.22
50 ST001TT-05 RING FOR STEERING COLUMN LOCKING $7.41
51 AR334-05 BENT SILENCER HOLDER - CHROMED $57.46
52 AR181-05 SILENCER HOLDER - COMPLETE $18.43
53 AR455-05 SILENCER HOLDER PLATE SUPPORT $6.57
54 AR331-05 RIGHT LONG SILENCER SUPPORT 100cc $15.96
55 AR332-05 LEFT SHORT SILENCER SUPPORT 100cc $12.77
56 AR086-05 CHAIN GUARD SUPPORT 100cc $7.56
57 GT017TT-05 WATER PUMP SUPPORT Ø30mm $41.76
58 ST110DX-05 RIGHT MALE BALL-JOINT M8 $13.68
59 ST110SX-05 LEFT MALE BALL-JOINT M8 $13.68
60 INT0692-06 PROTECTIVE HOUSING FOR CABLE - TEFLON - Per MT. $9.12
61 PM031TT-05 UNIVERSAL ENGINE MOUNT BRACKETS $17.10
62 INT0815-06 INTREPID NA2 MOD. BODY WORKS STICKERS $149.95
63 AR449-05 CHAIN STRETCHER  $11.67
76 AR608-06 REAR PLASTIC BUMPER MOD. KG 2008 $330.33
77 INT0992-07 ADJUSTABLE FOOTREST SYSTEM 2008 $100.70
78 INT0970-07 STABILIZER FRONT BAR Ø28mm. WHITE NYLON $48.64
83 INT0971-07 FLOOR PLATE STICKERS $41.80

Back to Top



Suzuka View

Back to Top



SUZUKA 125cc:

CHASSIS SUZUKA 125cc-06 STD  (HOMOL N. 162/CH/11)
POS. COD. DESCRIPTION PRICE
1 SILV125SC-06 FRAME  Ø32mm MOD. SUZUKA 125cc 2006
2 INT0634-05 FLOOR PLATE MOD. SUZUKA PRO - MARKED $88.65
3 INT0695-05 STABILIZER FRONT ROD D.30  CRU/EXP/SIL. $36.48
5 INT0014-05 STABILIZER REAR ROD D.28 CRU/EXP/SIL/SUZ $36.94
6 AR350-05 UPPER FRONT BUMPER CIK08 $29.45
7 AR349-05 LOWER FRONT BUMPER CIK08 $13.22
8 AR345-05 RIGHT BUMPER MOD. UNICO $60.31
9 AR346-05 LEFT BUMPER MOD. UNICO $60.31
10 INT0662-06 SIDE BUMPER WASHERS $5.02
11 INT0675-06 REAR BUMPER MOD. 2006 $36.94
12 INT0678-06 BUMPER FASTENING KIT Ø32 IN TEFLON $18.62
13 INT0676-06 ANTI-INTRUSION REAR CIK BAR WITH UNIBALL MOD. 2006 $33.06
14 INT0706-06 RIGHT SPINDLE - Ø25 HOLED - PH2 -  125cc.                (17mm;        25mm) ($105.87;    $161.50)
15 INT0707-06 LEFT SPINDLE - Ø25 HOLED - PH2 -  125cc.                   (17mm;        25mm) ($105.87;    $161.50)
16 INT0715-06 FRONT HUB L. 75 - SPINDLE Ø25 - 125cc. - AL $63.84
17 INT0071-05 REAR HUBS Ø 50 x 95 - AL $71.14
18 INT0004-05 AXLE Ø50 - T2-1040-125cc                           (SKM;      INTREPID) ($108.19;    $223.44)
19 INT0549AL-05 BEARING SUPPORT - Ø50 - AL $70.68
21 PD025-05 DISK SUPPORT Ø50 FLOATING EVO3ET 6 PIN - ERGAL $73.87
22 INT0643-06 BRAKING SYSTEM EVO3ET (164/FR/11) - COMPLETE $1,641.87
24 INT0571-05 STEERING COLUMN L. 470 MOD. SUZUKA $44.31
25 INT0016-05 RIGHT STEERING TIE ROD - L. 275 - MARKED $18.80
26 INT0630-06 RIGHT STEERING TIE ROD - L. 265 - MARKED $18.80
27 INT0629-06 LEFT STEERING TIE ROD - L. 270 - MARKED $18.80
28 INT0631-06 LEFT STEERING TIE ROD - L. 280 - MARKED $18.80
29 INT075-05 STEERING HUB FOR 125cc. - INTREPID $33.78
30 INT0144-05 INTREPID STEERING WHEEL Ø320 $158.00
31 AR277-05 EXTRACTABLE FUEL TANK - 8,5 lt. $53.96
32 AR444_-05 FIBERGLASS SEAT HIGH BACK MOD. FT RACING $120.78
33 AR060-05 SEAT SUPPORT L320 $9.14
34 AR415-05 SEAT SUPPORT L340 $9.14
35 AR305PR-05 SPOILER CIK 08 $71.37
36 AR312PR-05 SIDE BODYWORK RG/LF CIK 08 MOD. UNICO $40.08
37 AR298PR-05 NUMBER HOLDER PLATE - COMPLETE MOD. UNICO $49.41
38 INT0091-05 RIGHT PEDAL INTREPID  - ACCELERATOR $28.46
39 INT0092-05 LEFT PEDAL INTREPID - BRAKE $29.26
40 FR203-05 COMPLETE BRAKE TIE - ROD L. 340mm COMPLETO $15.01
41 INT0215-06 SAFETY CABLE L.280 - LITTLE FORKS,  CLIPS, EXTENSION $16.15
42 CE089MGN-06 FRONT WHEELS Ø132 - SPOKED - BLACK - MG $60.00
43 CE091MGN-06 REAR WHEELS Ø212 - SPOKED - BLACK - MG $60.00
44 AR197ALTT-05 TIGHTENING PIPE BELT - REINFORCED - Ø28 $7.98
45 AR403ALTT-05 TIGHTENING PIPE BELT - REINFORCED - Ø30 $7.98
46 AR014-05 SUPPORT KIT FOR HIGH NUMBER HOLDER PLATE $11.78
47 AR400-05 SUPPORT KIT FOR LOW NUMBER HOLDER PLATE - TEFLON $22.04
48 AR019-05 SPOILER FASTENING KIT - COMPLETE - CIK 08 $38.87
49 AR079RS-05 STEERING COLUMN SUPPORT - NYLON - 2 HOLES - RED $4.94
50 ST001-05 RING FOR STEERING COLUMN LOCKING $4.74
52 AR181-05 SILENCER HOLDER - COMPLETE $27.59
54 AR331-05 RIGHT LONG SILENCER SUPPORT 100cc $14.22
55 AR332-05 LEFT SHORT SILENCER SUPPORT 100cc $12.77
56 AR457-05 CHAIN GUARD SUPPORT 125cc $5.66
57 GT018-05 WATER PUMP SUPPORT Ø32mm $28.46
58 ST110DX-05 RIGHT MALE BALL-JOINT M8 $14.44
59 ST110SX-05 LEFT MALE BALL-JOINT M8 $14.44
60 INT0692-06 PROTECTIVE FOR CABLE- TEFLON $9.12
62 INT0037-05 INTREPID BODY WORKS STICKERS $119.95
63 AR449-05 CHAIN STRETCHER SUPPORT SCREW $8.74
64 FR370-06 FRONT HUB SUPPORT FOR 125cc. - SPINDLE Ø25 $102.22
65 INT0713-06 GEAR LEVER ADAPTER $8.55
66 INT0062-05 INTREPID GEAR LEVER $35.57
67 AR104-05 INTREPID GEAR LEVER HANDLE $10.30
68 AR101-05 INTREPID GEAR ROD  - HEXAGONAL  $11.32
69 AR099-05 CLUTCH LEVER $16.68

Back to Top



SUZUKA 100cc:

CHASSIS SUZUKA PRO 100cc-06 - STD (HOMOL N. 163/CH/08)
POS. COD. DESCRIPTION PRICE
1 SUZ/100SC-06 FRAME Ø32mm MOD. SUZUKA 100cc 2006
2 INT0634-05 FLOOR PLATE MOD. SUZUKA PRO - MARKED $88.65
3 INT0695-05 STABILIZER FRONT ROD D.30 SUZ.. $36.48
5 INT0014-05 STABILIZER REAR ROD D.28 CRU/EXP/SIL/SUZ $39.41
6 AR350-05 UPPER FRONT BUMPER CIK08 $29.45
7 AR349-05 LOWER FRONT BUMPER CIK08 $13.22
8 AR345-05 RIGHT BUMPER MOD. UNICO $60.31
9 AR346-05 LEFT BUMPER MOD. UNICO $60.31
10 INT0662-06 SIDE BUMPER WASHERS $5.02
11 INT0675-06 REAR BUMPER MOD. 2006 $36.94
12 INT0678-06 BUMPER FASTENING KIT Ø32 IN TEFLON $18.62
13 INT0676-06 ANTI-INTRUSION REAR CIK BAR WITH UNIBALL MOD. 2006 $33.06
14 INT0645DX-06 RIGHT SPINDLE - Ø25 HOLED - PH2 -  100cc.               (17mm;      25mm) ($ 93.56;    $131.10)
15 INT0645SX-06 LEFT SPINDLE - Ø25 HOLED - PH2 -  100cc.                 (17mm;      25mm) ($ 93.56;    $131.10)
16 INT0637-06 FRONT HUBS L. 95 - SPINDLE Ø25 - 100cc. - AL $65.97
17 INT0071-05 REAR HUBS Ø 50 x 95 - AL $71.14
18 INT0002-05 AXLE Ø50 - T2 - 1020 - 100cc.                                      (SKM;    INTREPID) ($ 108.19;    $223.14)
19 INT0549AL-05 BEARING SUPPORT - Ø50 - AL $70.68
20 INT0104-05 SPROCKET SUPPORT Ø50 DOUBLE LEDGE - AL $96.03
21 INT0502-05 DISK SUPPORT Ø50 100cc - AL $73.87
22 INT0690-06 BRAKING SYSTEM EVO8 - REAR - (89-1/FR/11) $575.32
23 PM030-05 HOLED ENGINE MOUNT 30X92 - HQ - COL. GOLD - MG $121.60
24 INT0571-05 STEERING COLUMN L. 470 MOD. SUZUKA $44.31
25 INT0016-05 RIGHT STEERING TIE ROD - L. 275 $18.80
26 INT0630-06 RIGHT STEERING TIE ROD - L. 265 $18.80
27 INT0629-06 LEFT STEERING TIE ROD - L. 270 $18.80
28 INT0631-06 LEFT STEERING TIE ROD - L. 280 $18.80
29 INT0074-05 STEERING HUB FOR 100cc. - INTREPID $15.31
30 INT0144-05 INTREPID STEERING WHEEL Ø320 $158.00
31 AR277-05 EXTRACTABLE FUEL TANK - 8,5 lt. $53.96
32 AR444_-05 FIBERGLASS SEAT HIGH BACK MOD. FT RACING $120.78
33 AR060-05 SEAT SUPPORT L320 $9.14
34 AR415-05 SEAT SUPPORT L340 $9.14
35 AR305PR-05 SPOILER CIK 08 $71.37
36 AR312PR-05 SIDE BODYWORK RG/LF CIK 08 MOD. UNICO $40.08
37 AR298PR-05 NUMBER HOLDER PLATE - COMPLETE MOD. UNICO $49.41
38 AR097DX-06 PEDAL  - ACCELERATOR $28.46
39 AR097SX-06 PEDAL  - BRAKE WITH NEW  plaque $29.26
40 FR354-06 BRAKE TIE - ROD COMPL. WITH CLIPS AND FORKS L. 410mm $15.01
41 INT0691-06 SAFETY CABLE L.350 - LITTLE FORKS,  CLIPS, EXTENSION $16.15
42 CE089MGN-06 FRONT WHEELS Ø132 - SPOKED - BLACK - MG $60.00
43 CE091MGN-06 REAR WHEELS Ø212 - SPOKED - BLACK - MG $60.00
44 AR197ALTT-05 TIGHTENING PIPE BELT - REINFORCED - Ø28 $7.98
45 AR403ALTT-05 TIGHTENING PIPE BELT - REINFORCED - Ø30 $7.98
46 AR014-05 SUPPORT KIT FOR HIGH NUMBER HOLDER PLATE $11.78
47 AR400-05 SUPPORT KIT FOR LOW NUMBER HOLDER PLATE - TEFLON $22.04
48 AR019-05 SPOILER FASTENING KIT - COMPLETE - CIK 08 $38.87
49 AR079RS-05 STEERING COLUMN SUPPORT - NYLON - 2 HOLES - RED $4.94
50 ST001-05 RING FOR STEERING COLUMN LOCKING $4.74
51 AR334-05 BENT SILENCER HOLDER - CHROMED $47.88
52 AR181-05 SILENCER HOLDER - COMPLETE $27.59
53 AR455-05 SILENCER HOLDER PLATE SUPPORT $4.94
54 AR331-05 RIGHT LONG SILENCER SUPPORT 100cc $14.82
55 AR332-05 LEFT SHORT SILENCER SUPPORT 100cc $12.77
56 AR086-05 CHAIN GUARD SUPPORT 100cc $5.66
57 GT018-05 WATER PUMP SUPPORT Ø32mm $28.46
58 ST110DX-05 RIGHT MALE BALL-JOINT M8 $14.44
59 ST110SX-05 LEFT MALE BALL-JOINT M8 $14.44
60 INT0692-06 PROTECTIVE FOR CABLE- TEFLON $9.12
61 PM031TT-05 UNIVERSAL ENGINE MOUNT BRACKETS $11.78
62 INT0037-05 INTREPID BODY WORKS STICKERS $119.95
63 AR449-05 CHAIN STRETCHER $8.74

Back to Top



Baby Kart View



Back to Top



Freedom 2008

Back to Top

CHASSIS MOD. FREEDOM 40 -  FRAME Ø28 mm - AXLE 40mm
Pos. CODE DESCRIPTION PRICE
1 FREEDOMSC-08 FRAME Ø28mm  MOD. FREEDOM $1,295.00
2 INT0791-06 FLOOR PLATE MOD. FREEDOM MARKED $95.76
6 INT0840-06 NA2 MOD. UPPER FRONT BUMPER - CIK11 $49.40
7 INT0841-06 NA2 LOWER FRONT BUMPER - CIK11 $17.63
8 INT0817-06 RIGHT BUMPER MOD. NA2 - CIK11 $94.85
9 INT0818-06 LEFT BUMPER MOD. NA2 - CIK11 $94.85
10 INT0662-06 SIDE BUMPER WASHERS - TEFLON $5.02
11 AR024-05 REAR BUMPER WITH SILENCER HOLDER-WHEEL BASE 610 $53.16
12 AR026TT-05 REAR BUMPER FASTENING KIT COMPLETE - Ø28mm $24.85
13 AR036-05 ANTI-INTRUSION REAR CIK BAR - L. 610mm $21.28
14 ST503DX-06 RIGHT SPINDLE - Ø25 HOLED - PH2 -  100cc. $131.10
15 ST503SX-06 LEFT SPINDLE - Ø25 HOLED - PH2 -  100cc. $131.10
16 INT0637-06 FRONT HUBS L. 95 - SPINDLE Ø25 - 100cc. - AL $75.24
17 MZ021TT-05 REAR HUB Ø40x 95 - AL $49.88
18 AX015-05 HOLED AXLE Ø40x1040 - B TYPE - MEDIUM $107.59
19 INT0908-06 BEARING SUPPORT - Ø40 - AL $78.47
20 PC40ST-05 SPROCKET SUPPORT - Ø40 - S1 LINE $60.91
21 PD40ST-05 DISK SUPPORT - Ø40 - S1 LINE $55.58
22 INT0690-06 REAR BRAKING SYSTEM EVO8 - (89-1/FR/11) $661.20
23 PM077-07 ENGINE MOUNT Ø28X92 MOD. 2008 ALUMINIUM $114.00
24 INT0097-05 STEERING COLUMN MOD. L. 470mm $57.00
25 INT0983-07 CYLINDRIC TIE RODS 270mm. INTREPID 2008 $18.24
29 ST052TT-06 STEERING HUB FOR 100cc.  $26.75
30 VL018GR-05 VELVET LEATHER STEERING WHEEL - COL.GREY and BLACK $147.56
31 AR277-05 EXTRACTABLE FUEL TANK - 8,5 lt. $73.72
32 INT089_-06 FIBERGLASS TRASPARENT SEAT MOD. F6  $140.00
33 AR060-05 SEAT SUPPORT L320 $13.53
34 AR415-05 SEAT SUPPORT L340 $13.53
35 INT0802-06 SPOILER NA" MOD. - CIK11 -  GREY $94.50
36 INT0801-06 RIGHT SIDE BODYWORK - NA2 MOD. - CIK11 - GREY $84.00
INT0800-06 LEFT SIDE BODYWORK - NA2 MOD. - CIK11 - GREY $84.00
37 INT0803-06 NUMBER HOLDER PLATE MOD. NA2 - CIK11 - GREY $37.80
38 AR222-05 PEDAL  - ACCELERATOR $38.00
39 AR097-06 PEDAL  - BRAKE WITH NEW PLAQUE $38.53
40 FR354-05 BRAKE TIE COMPL.WITH CLIPS AND FORKS- ROD L. 410mm $20.03
41 INT0691-06 SAFETY CABLE L.350 - LITTLE FORKS, CLIPS, EXTENSION $21.55
42 INT0905-06 INTREPID FRONT WHEEL RIMS H 132 - NEW 2007 $95.76
43 INT0903-06 INTREPID REAR FRONT WHEEL RIMS H 212 - NEW 2007 $104.88
46 INT0819-06 SUPP. FOR HIGH NUMBER HOLDER PLATE - NA2 - CIK11 $25.54
47 INT1009-07 SUPP. FOR LOW NUMBER HOLDER PLATE NA2 2008 - CIK11 $15.20
48 INT0821-06 COMPLETE SPOILER FASTENING KIT  - MOD NA2 - CIK11 $83.60
49 ST079RS-05 STEERING COLUMN SUPPORT - NYLON - 2 HOLES - RED $7.22
50 ST001TT-05 RING FOR STEERING COLUMN LOCKING $7.41
52 AR181-05 SILENCER HOLDER - COMPLETE $18.43
56 AR086-05 CHAIN GUARD SUPPORT $7.56
58 ST110DX-05 RIGHT MALE BALL-JOINT M8 $13.68
59 ST110SX-05 LEFT MALE BALL-JOINT M8 $13.68
60 INT0692-06 PROTECTIVE HOUSING FOR CABLE - TEFLON - Per MT. $9.12
61 PM031-05 ALUMINIUM UNIVERSAL ENGINE MOUNT BRACKETS $17.10
62 INT0815-06 INTREPID NA2 MOD. BODY WORKS STICKERS $149.95
63 AR449-05 CHAIN STRETCHER $11.67
FREEDOM 30 IS BY SPECIAL ORDER ONLY
CHASSIS MOD. FREEDOM 30 -  FRAME Ø28 mm - AXLE 30 mm
17 MZ007TT-05 REAR HUB Ø30 x 95 - AL $49.52
18 AX011-05 HOLED AXLE Ø30x1040 $112.04
19 GC006TT-05 BEARING SUPPORT Ø30mm - AL $36.96
20 PC30ST-05 SPROCKET SUPPORT Ø30mm - S1 LINE $60.91
21 PD30ST-05 DISK SUPPORT Ø30mm - S1 LINE $55.58



Back to Top

Cruiser Max FRM 2008

Back to Top

CHASSIS MOD. CRUISER MAX - 08 (Homologation CIK  # 88/CH/11)
Pos. CODE DESCRIPTION PRICE
1 MAX30SC-08 FRAME Ø30mm  MOD.  CRUISER MAX 2008 $1,395.00
2 INT0805-06 FLOOR PLATE MOD. CRUISER MAX MARKED $95.76
3 INT0622-05 STABILIZER FRONT ROD D.28  $36.48
4 INT0355-05 STABILIZER SIDE ROD IV PIPE D.30  $39.41
5 INT0014-05 STABILIZER REAR ROD D.28  $39.41
6 INT0840-06 UPPER FRONT BUMPER - CIK08 / CIK11 $49.40
7 INT0841-06 LOWER FRONT BUMPER - CIK08 / CIK11 $17.63
8 INT0817-06 RIGHT BUMPER MOD. NA2 - CIK11 $94.85
9 INT0818-06 LEFT BUMPER MOD. NA2 - CIK11 $94.85
10 INT0662-06 SIDE BUMPER WASHERS IN TEFLON $5.02
11 INT0675-06 REAR BUMPER Mod.  2006 $62.70
12 INT0677TT-06 BUMPER FASTENING KIT Ø30 IN TEFLON $28.50
13 INT0676-06 ANTI-INTRUSION REAR CIK BAR WITH UNIBALL Mod.  2006 $33.06
14 INT0645DX-06 RIGHT SPINDLE - Ø25 HOLED - PH2 -  100cc. $131.10
15 INT0645SX-06 LEFT SPINDLE - Ø25 HOLED - PH2 -  100cc. $131.10
16 INT0637-06 FRONT HUBS L. 95 - SPINDLE Ø25 - 100cc. AL $75.24
17 INT0071-05 REAR HUBS Ø50 x 95 - AL $81.32
18 INT0831-06 AXLE Ø50 - T2 - 1020 - 100cc. $212.04
19 INT0549AL-05 BEARING SUPPORT - Ø50 - AL $88.35
20 INT0104-05 SPROCKET SUPPORT Ø50 DOUBLE LEDGE - AL $96.03
21 INT0502-05 DISK SUPPORT Ø50 100cc - AL $92.34
22 INT0690-06 EVO8 BRAKE SYSTEM - REAR (89-1/FR/11) $661.20
23 INT0995-07 ENGINE MOUNT AL Ø32X92 INTREPID 2008 $114.00
24 INT0570-05 STEERING COLUMN L. 490 - Mod.  EXP/CRU $57.00
25 INT0983-07 CYLINDRIC TIE ROD L. 270 INTREPID 2008 $18.24
29 ST052TT-05 STEERING HUB FOR 100cc. $26.75
30 INT0144-05 INTREPID STEERING WHEEL Ø320 $186.20
31 AR277-05 EXTRACTABLE FUEL TANK - 8,5 lt. $73.72
32 INT089_-06 FIBERGLASS TRASPARENT SEAT MOD. F6  $140.00
33 AR060-05 SEAT SUPPORT L320 $13.53
34 AR415-05 SEAT SUPPORT L340 $13.53
35 INT0802-06 SPOILER NA" MOD. - CIK11 -  GREY $94.50
36 INT0801-06 RIGHT SIDE BODYWORK - NA2 MOD. - CIK11 - GREY $84.00
INT0800-06 LEFT SIDE BODYWORK - NA2 MOD. - CIK11 - GREY $84.00
37 INT0803-06 NUMBER HOLDER PLATE MOD. NA2 - CIK11 - GREY $37.80
38 AR222-05 PEDAL  - ACCELERATOR $38.00
39 AR097-06 PEDAL  - BRAKE WITH NEW PLAQUE $38.53
40 FR354-05 BRAKE TIE COMPL.WITH CLIPS AND FORKS- ROD L. 410 $20.03
41 INT0691-06 SAFETY CABLE L.350 - LITTLE FORKS, CLIPS, EXTENSION $21.55
42 INT0905-06 INTREPID FRONT WHEEL RIMS H 132 - NEW 2007 $95.76
43 INT0903-06 INTREPID REAR FRONT WHEEL RIMS H 212 - NEW 2007 $104.88
44 AR197ALTT-05 TIGHTENING PIPE BELT - REINFORCED - Ø28 $9.46
45 AR403ALTT-05 TIGHTENING PIPE BELT - REINFORCED - Ø30 $9.46
46 INT0819-06 SUPP. FOR HIGH NUMBER HOLDER PLATE - NA2 - CIK11 $25.54
47 INT1009-07 SUPP. FOR LOW NUMBER HOLDER PLATE NA2 2008 - CIK11 $15.20
48 INT0821-06 COMPLETE SPOILER FASTENING KIT  - MOD NA2 - CIK11 $83.60
49 ST079RS-05 STEERING COLUMN SUPPORT - NYLON - 2 HOLES - RED $7.22
50 ST001TT-05 RING FOR STEERING COLUMN LOCKING $7.41
55 AR577-06 KIT SILENCER SUPP. UNIV. MOD. ROTAX - AL ANOD. TIT. $133.00
56 AR086-05 CHAIN GUARD SUPPORT 100cc $7.56
58 ST110DX-05 RIGHT MALE BALL-JOINT M8 $13.68
59 ST110SX-05 LEFT MALE BALL-JOINT M8 $13.68
60 INT0692-06 PROTECTIVE HOUSING FOR CABLE - TEFLON - Per MT. $9.12
61 PM031-05 UNIVERSAL ENGINE MOUNT BRACKETS - AL $17.10
62 INT0815-06 INTREPID NA2 MOD. BODY WORKS STICKERS $149.95
63 AR449-05 CHAIN STRETCHER $11.67

Back to Top



Cruiser DD2 2008

Back to Top

CHASSIS MOD. CRUISER DD2 - 08 (Homologation CIK  # 88/CH/11)
Pos. CODE DESCRIPTION PRICE
1 DD230SC-08 FRAME Ø30mm  MOD. CRUISER DD2 2008 $1,430.00
2 INT0813-06 FLOOR PLATE  DD2 MOD. - MARKED $95.76
3 INT0622-05 STABILIZER FRONT ROD D.28  $36.48
4 INT0355-05 STABILIZER SIDE ROD IV PIPE D.30  $39.41
5 INT1008-07 STABILIZER REAR ROD L. 410 mm  Ø 28 FOR DD2  $39.41
6 INT0840-06 UPPER FRONT BUMPER - CIK08 / CIK11 $49.40
7 INT0841-06 LOWER FRONT BUMPER - CIK08 / CIK11 $17.63
8 INT0817-06 RIGHT BUMPER MOD. NA2 - CIK11 $94.85
9 INT0818-06 LEFT BUMPER MOD. NA2 - CIK11 $94.85
10 INT0662-06 SIDE BUMPER WASHERS IN TEFLON $5.02
11 AR585-06 COMPLETE REAR BUMPER DD2 Mod. Call for Price
14 INT0706-06 RIGHT SPINDLE - Ø25 HOLED - PH2 -  125cc. $161.50
15 INT0707-06 LEFT SPINDLE - Ø25 HOLED - PH2 -  125cc. $161.50
16 FR366TT-06 FRONT HUB L. 75 - SPINDLE Ø25 - 125cc. - AL $54.15
17 MZ021TT-05 REAR HUBS Ø40 x 95 - AL $49.88
18 AX059-06 AXLE Ø40 x 1040 B - DD2 Mod. $126.50
19 INT0908-06 UNIVERSAL BEARING SUPPORT - Ø40 - AL $78.47
21 PD060TT-06 FLOATING DISK SUPPORT Ø40  - 6 PIN - AL $86.18
22 INT0643-06 BRAKING SYSTEM EVO3ET (164/FR/11) - COMPLETE $2,399.13
24 ST0514-06 STEERING COLUMN DD2 Mod. $57.00
25 INT0983-07 CYLINDRIC TIE ROD L. 270mm. INTREPID 2008 $18.24
29 ST052TT-05 STEERING HUB FOR 100cc. $26.75
30 INT0144-05 INTREPID STEERING WHEEL Ø320 $186.20
31 AR277-05 EXTRACTABLE FUEL TANK - 8,5 lt. $73.72
32 INT089_-06 FIBERGLASS TRASPARENT SEAT MOD. F6  $140.00
33 AR060-05 SEAT SUPPORT L. 320 $13.53
34 AR415-05 SEAT SUPPORT L. 340 $13.53
35 INT0802-06 SPOILER NA" MOD. - CIK11 -  GREY $94.50
36 INT0801-06 RIGHT SIDE BODYWORK - NA2 MOD. - CIK11 - GREY $84.00
INT0800-06 LEFT SIDE BODYWORK - NA2 MOD. - CIK11 - GREY $84.00
37 INT0803-06 NUMBER HOLDER PLATE MOD. NA2 - CIK11 - GREY $37.80
38 AR222-05 PEDAL  - ACCELERATOR $38.00
39 AR097-06 PEDAL  - BRAKE WITH NEW PLAQUE $38.53
40 FR352-06 BRAKE TIE - ROD COMPL. WITH CLIPS AND FORKS L. 340mm $20.03
41 INT0758-06 SAFETY CABLE WITH DOUBLE SCREW CLAMP $21.28
42 INT0905-06 INTREPID FRONT WHEEL RIMS H 132 - NEW 2007 $95.76
43 INT0903-06 INTREPID REAR FRONT WHEEL RIMS H 212 - NEW 2007 $104.88
44 AR197ALTT-05 TIGHTENING PIPE BELT - REINFORCED - Ø28 $9.46
45 AR403ALTT-05 TIGHTENING PIPE BELT - REINFORCED - Ø30 $9.46
46 INT0819-06 SUPP. FOR HIGH NUMBER HOLDER PLATE - NA2 - CIK11 $25.54
47 INT1009-07 SUPP. FOR LOW NUMBER HOLDER PLATE NA2 2008 - CIK11 $15.20
48 INT0821-06 COMPLETE SPOILER FASTENING KIT  - MOD NA2 - CIK11 $83.60
49 ST079RS-05 STEERING COLUMN SUPPORT - NYLON - 2 HOLES - RED $7.22
50 ST001TT-05 RING FOR STEERING COLUMN LOCKING $7.41
52 AR181-05 SILENCER HOLDER - COMPLETE $18.43
56 AR086-05 CHAIN GUARD SUPPORT 100cc $7.56
58 ST110DX-05 RIGHT MALE BALL-JOINT M8 $13.68
59 ST110SX-05 LEFT MALE BALL-JOINT M8 $13.68
60 INT0692-06 PROTECTIVE HOUSING FOR CABLE - TEFLON - Per MT. $9.12
61 PM031-05 UNIVERSAL ENGINE MOUNT BRACKETS - AL $17.10
62 INT0815-06 INTREPID NA2 MOD. BODY WORKS STICKERS $149.95
63 AR449-05 CHAIN STRETCHER $11.67
64 FR038TT-06 FRONT HUB SUPPORT FOR 125cc. - SPINDLE Ø25 $73.53
70 PM074-06 STEEL ENGINE MOUNTS H 18 - Ø30 mm $23.29
PM073-06 STEEL ENGINE MOUNTS H 25 - Ø30 mm $23.29
71 AR579-06 COMPLETE SHORT SILENCER SUPPORT DD2 Mod. - Ø 28   $63.84
AR581-06 COMPLETE LONG SILENCER SUPPORT DD2 Mod. - Ø 28   $59.28
72 AR666-06 MOD. DD2 Ø 30 SUPPORT KIT FOR FUEL PUMP $31.92
73 GT050-06 MOD. DD2  LOW RADIATOR PLATE SUPPORT $13.19
74 GT051-06 MOD. DD2  HIGH RADIATOR PLATE SUPPORT $31.43


Back to Top



Chassis Maky 2008

Back to Top

CHASSIS MAKY  (Homologation CSAI  # 59/TM/09)
Pos. CODE DESCRIPTION PRICE
1 MAKYSC-05 FRAME MINIKART MAKY MOD. - HOMOLOG. CSAI 59/TM/09 $1,185.00
2 INT0991-07 MINIKART FLOOR PLATE ANODIZED AND MARKED $95.76
6 AR020-05 HIGHT FRONT BUMPERS MOD. FIK05 FOR MINIKART MAKY $32.45
7 AR470-05 LOW FRONT BUMPERS FIK05 FOR MOD. MINIKART MAKY $16.72
8 AR466-05 RIGHT SIDE POD SUPPORT MOD. FIK05 - FOR MINIKART MAKY $47.31
9 AR465-05 LEFT SIDE POD SUPPORT MOD. FIK05 - FOR MINIKART MAKY $47.31
11 AR476-05 REAR BUMPER FOR MINIKART MOD. FIK 05  $85.50
12 AR026TT-05 REAR BUMPER KIT SUPPORT. Ø28 - ADJUSTABLE PIN - TITANIO $24.85
13 AR576-06 REAR ROD FOR BUMPER - MINIKART L.580 $17.78
14 ST058DX-05 SPINDLE RIGHT 10,5° CHROM. PLATED - SHORT SERIES $80.75
15 ST058SX-05 SPINDLE LEFT 10,5° CHROM. PLATED - SHORT SERIES $80.75
17 INT0998-07 REAR HUB Ø30x65mm - ANOD. TITANIUM $45.03
18 INT0988-07 AXLE Ø30x5x960mm. CH.6 - MK2 (medium)  $111.53
19 GC023TT-05 Ø30 BEARING BUSH WITH 4 FIXING HOLES - TITANIUM $48.79
20 PC30ST-05 SPROCKET SUPPORT Ø30 - S1 LINE - TITANIUM $60.91
21 PD052TT-05 DISK SUPPORT Ø30mm FOR MINIKART - TITANIUM $45.60
22 INT0816-06 HYDRAULIC BRAKING SYST. EVO6ET - HOMOLOG.CSAI ET60/F/09 $560.88
23 PM077-07 ENGINE MOUNT Ø28x92mm MOD. 2008 ALUMINIUM $114.00
24 INT1002-07 STEERING COLUMN INTREPID L.420mm. FOR MINIKART $51.30
25 INT0984-07 CYLINDER TIE ROD L.230mm INTREPID 2008 $18.24
29 ST052TT-06 STEERING HUB FOR 100cc.  $26.75
30 VLMAKY-05 Ø300mm 4 SPOKES STEERING WHEEL MOD. INTREPID  $193.80
31 AR067-05 3 LITERS FUEL TANK FOR MAKY $28.01
32 AR497-05 SEAT FOR MINIKART "LUPPETTO" MEASURE 24 cm $111.00
35 AR008AG-05 FRONT SPOILER FOR MINIKART MOD.FIK05 - SILVER $72.80
36 AR460AGDX-05 RIGHT POD FOR MINIKART MOD.FIK05 - SILVER $37.98
AR460AGSX-05 LEFT POD FOR MINIKART MOD.FIK05 - SILVER $37.98
37 AR461AG-05 NUMBER HOLDER PLATE FOR MINIKART MOD.FIK05 - SILV. $42.70
38 AR087-05 ACCELERATOR PEDAL MINIKART 2005 CHROM. PLATED $28.88
39 AR090-05 BRAKE PEDAL FOR MINIKART 2005 - CHROM. PLATED $28.88
40 FR351-05 TIE ROD M6x270 COMPLETE FOR BRAKE PUMP MINIKART $20.03
41 AR654-06 SAFETY CABLE FOR BRAKE PUMP WITH 2 SCREW CLAMP $9.96
42 DW-725-139 DWT FRONT WHEEL 4.625 in. - Aluminum $35.00
43 DW-725-199 DWT REAR WHEEL 5.5 in. - ALuminum $35.00
46 AR494-05 UPPER FRONT SPOILER SUPP. MAKY - FIK05 CHROME PLATED $22.31
47 AR477-05 LOWER NUM. HOLDER SUPP. FOR MAKY - CHROME PLATED $29.26
48 AR019-05 CIK08 TYPE FRONT FAIRING FASTENING KIT COMPLET  $53.20
49 ST079RS-05 STEERING COLUMN SUPP. NYLON WITH 2 HOLES - RED COLOR $7.22
50 ST001TT-05 STEERING LOCKING BUSH WITH THREADED PINS $7.41
51 AR334-05 CURVED SILENCER HOLDER - CHROM. PLATED $57.46
52 AR181-05 SILENCER HOLDER - COMPLETE $18.43
53 AR455-05 SILENCER HOLDER PLATE SUPPORT $6.57
56 AR086-05 CHAIN GUARD SUPPORT 100cc $7.56
58 ST110DX-05 RIGHT MALE BALL-JOINT M8 $13.68
59 ST110SX-05 LEFT MALE BALL-JOINT M8 $13.68
60 INT0692-06 PROTECTIVE HOUSING FOR CABLE - TEFLON - Per MT. $9.12
61 PM031TT-05 UNIVERSAL ENGINE MOUNT BRACKETS $17.10
62 MAKY003-05 KIT BODY WORK STICKERS FOR MAKY $129.95
63 AR449-05 CHAIN STRETCHER  $11.67
77 INT1004-07 2008 ADJUSTABLE FOOTREST SYSTEM MOD. MAKY 2008 $81.70
83 INT0985-07 FLOOR PLATE STICKER MOD. MINIKART INTREPID $41.80

Back to Top



World Formula 2008



Back to Top

CHASSIS MOD. WORLD FORMULA 2008 – FRAME 30 mm - AXLE 40 mm
Pos. CODE DESCRIPTION PRICE
1 WORLD40SC-08 FRAME Ø30mm MOD. WORLD FORMULA $1,295.00
2 INT0790-06 FLOOR PLATE MOD. WORLD FORMULA MARKED $95.76
6 INT0840-06 NA2 MOD. UPPER FRONT BUMPER - CIK11 $49.40
7 INT0841-06 NA2 LOWER FRONT BUMPER - CIK11 $17.63
8 INT0817-06 RIGHT BUMPER MOD. NA2 - CIK11 $94.85
9 INT0818-06 LEFT BUMPER MOD. NA2 - CIK11 $94.85
10 INT0662-06 SIDE BUMPER WASHERS - TEFLON $5.02
11 AR161-05  WORLD FORMULA REAR BUMPER - WHEEL BASE 620mm $53.16
12 AR027TT-05 REAR BUMPER FASTENING KIT COMPLETE - Ø30mm $24.85
13 AR145-05 ANTI-INTRUSION REAR CIK BAR - MOD. STD - L. 620mm $21.28
14 ST503DX-06 RIGHT SPINDLE - Ø25 HOLED - PH2 -  100cc. $131.10
15 ST503SX-06 LEFT SPINDLE - Ø25 HOLED - PH2 -  100cc. $131.10
16 INT0637-06 FRONT HUBS L. 95 - SPINDLE Ø25 - 100cc. - AL $75.24
17 MZ021TT-05 REAR HUB Ø40x 95 - AL $49.88
18 AX015-05 AXLE Ø40X1040 - B TYPE - MEDIUM $107.59
19 INT0908-06 BEARING SUPPORT - Ø40 - AL $78.47
20 PC40ST-05 SPROCKET SUPPORT - Ø40 - S1 LINE $60.91
21 PD40ST-05 DISK SUPPORT - Ø40 - S1 LINE $55.58
22 INT0690-06 REAR BRAKING SYSTEM EVO8 - (89-1/FR/11) $661.20
23 PM060-06 BRACKETS ENGINE MOUNTS FOR WORLD FORMULA $43.18
24 INT0097-05 STEERING COLUMN L. 470mm $57.00
25 INT0983-07 CYLINDRIC TIE RODS 270mm. INTREPID 2008 $18.24
29 ST052TT-06 STEERING HUB FOR 100cc.  $26.75
30 VL018GR-05 VELVET LEATHER STEERING WHEEL - COL.GREY and BLACK $147.56
31 AR277-05 EXTRACTABLE FUEL TANK - 8,5 lt. $73.72
32 INT089_-06 FIBERGLASS TRASPARENT SEAT MOD. F6  $140.00
33 AR060-05 SEAT SUPPORT L.320 $13.53
34 AR415-05 SEAT SUPPORT L.340 $13.53
35 INT0802-06 SPOILER NA" MOD. - CIK11 -  GREY $94.50
36 INT0801-06 RIGHT SIDE BODYWORK - NA2 MOD. - CIK11 - GREY $84.00
INT0800-06 LEFT SIDE BODYWORK - NA2 MOD. - CIK11 - GREY $84.00
37 INT0803-06 NUMBER HOLDER PLATE MOD. NA2 - CIK11 - GREY $37.80
38 AR222-05 PEDAL  - ACCELERATOR $38.00
39 AR097-06 PEDAL  - BRAKE WITH NEW PLAQUE $38.53
40 FR354-05 BRAKE TIE COMPL.WITH CLIPS AND FORKS- ROD L. 410mm $20.03
41 INT0691-06 SAFETY CABLE L.350 - LITTLE FORKS,  CLIPS, EXTENSION $21.55
42 INT0905-06 INTREPID FRONT WHEEL RIMS H 132 - NEW 2007 $95.76
43 INT0903-06 INTREPID REAR FRONT WHEEL RIMS H 212 - NEW 2007 $104.88
46 INT0819-06 SUPP. FOR HIGH NUMBER HOLDER PLATE - NA2 - CIK11 $25.54
47 INT1009-07 SUPP. FOR LOW NUMBER HOLDER PLATE NA2 2008 - CIK11 $15.20
48 INT0821-06 COMPLETE SPOILER FASTENING KIT  - MOD NA2 - CIK11 $83.60
49 ST079RS-05 STEERING COLUMN SUPPORT - NYLON - 2 HOLES - RED $7.22
50 ST001TT-05 RING FOR STEERING COLUMN LOCKING $7.41
52 AR181-05 SILENCER HOLDER - COMPLETE $18.43
56 AR086-05 CHAIN GUARD SUPPORT 100cc $7.56
58 ST110DX-05 RIGHT MALE BALL-JOINT M8 $13.68
59 ST110SX-05 LEFT MALE BALL-JOINT M8 $13.68
60 INT0692-06 PROTECTIVE HOUSING FOR CABLE - TEFLON - Per MT. $9.12
61 PM031-05 ALUMINIUM UNIVERSAL ENGINE MOUNT BRACKETS $17.10
62 INT0815-06 INTREPID NA2 MOD. BODY WORKS STICKERS $149.95
63 AR449-05 CHAIN STRETCHER  $11.67



Back to Top
