EXPLODED VIEWS & PRICING:

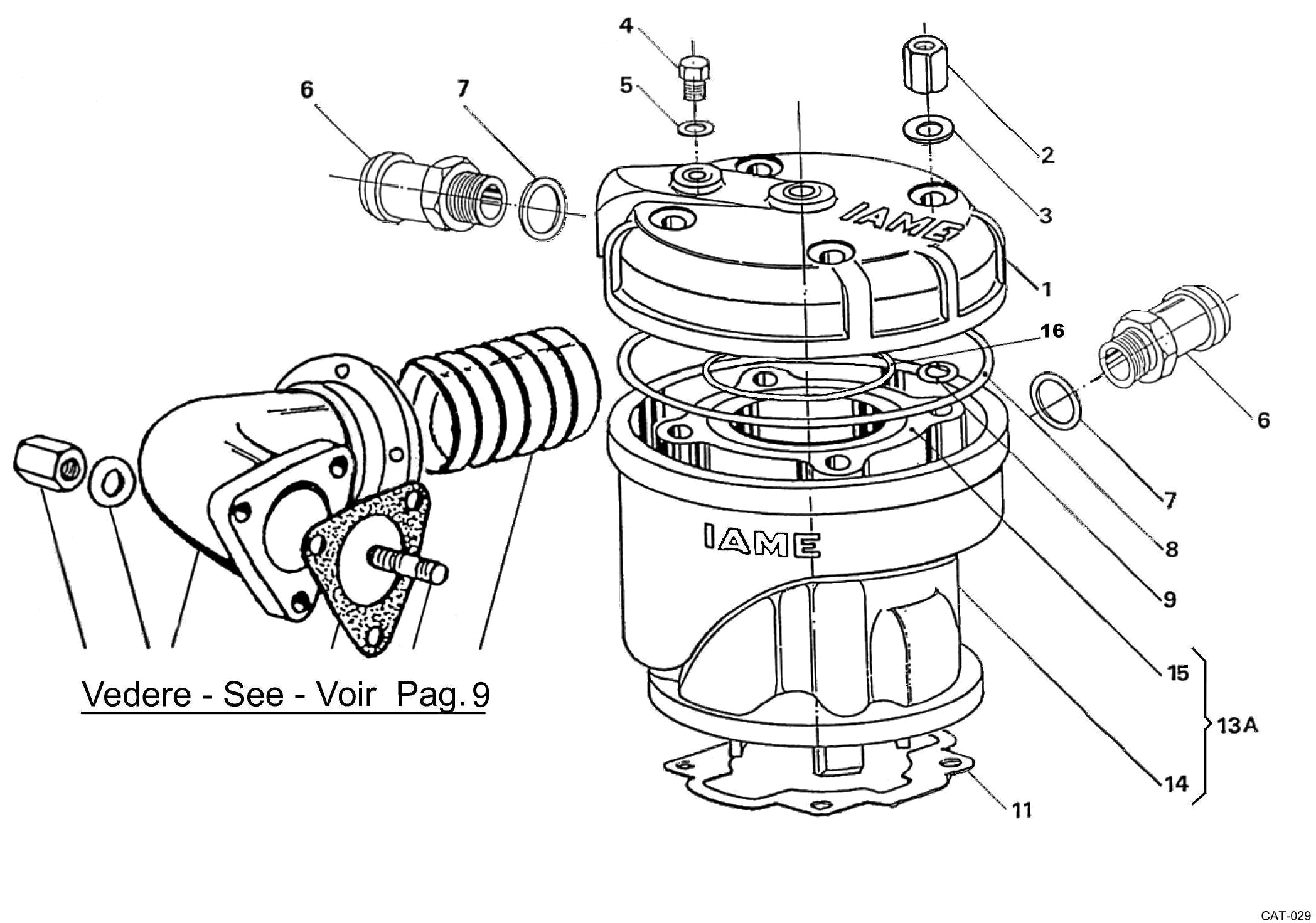

PARILLA LEOPARD Fig. Code Description List price 100cc 125cc 1 A-100043 Cylinder HEAD X 160.38 1 A-125041 Cylinder HEAD X 160.38 2 10350 Head NUT X X 2.19 3 10635 Head nut WASHER X X 1.09 4 B-25840 Temperature gauge PLUG X X 3.28 5 B-25845 Plug GASKET X X 2.19 6 B-25830A Water fitting PIPE X X 7.65 7 B-25835 Pipe GASKET X X 2.19 8 B-25820 Head GASKET o-ring X X 3.28 9 B-25825 Tie-rod GASKET o-ring X X 1.09 11 BP-25045 Cylinder GASKET X X 2.19 11 BP-25046 Cylinder GASKET X X 2.19 13A A-100034 Complete CYLINDER X 530.71 13A A-125036 Complete CYLINDER X 530.71 16 D-37049 Head GASKET o-ring X 5.47 16 DBP-95049 Head GASKET o-ring X 5.47

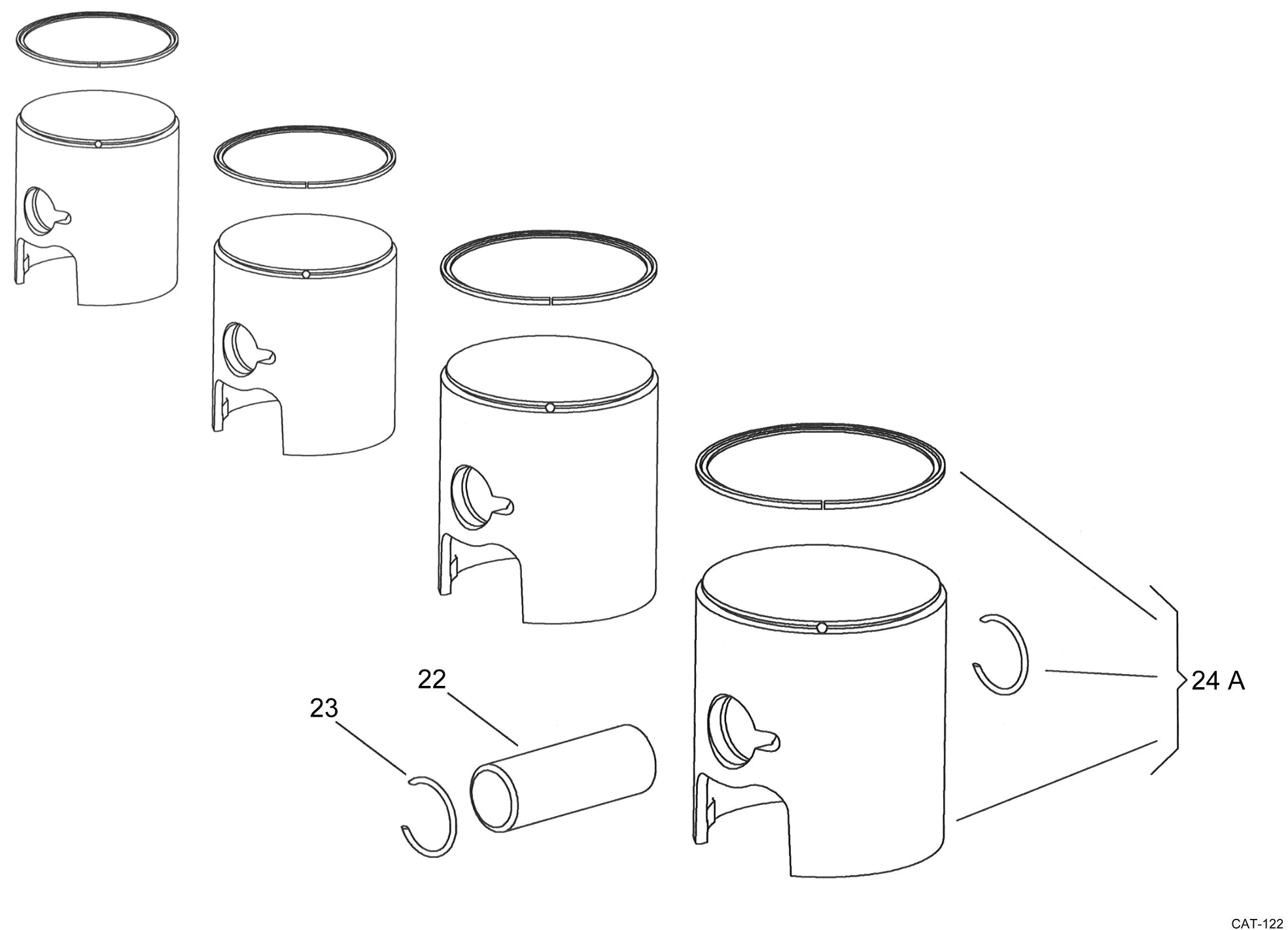

PARILLA LEOPARD Fig. Code Description List Price 100cc 22 B-10321-R Piston PIN 1^ sel. X 20.78 22 B-10321-B Piston PIN 2^ sel. X 20.78 22 B-10321-G Piston PIN 3^ sel. X 20.78 23 10341-A CIRCLIP X 1.09 24A EBP-85050-CV Complete green PISTON X 98.42 24A EBP-85050-CR Complete red PISTON X 98.42 24A EBP-85055-CV Complete green PISTON X 98.42 24A EBP-85055-CR Complete red PISTON X 98.42 24A EBP-85065-CV Complete green PISTON X 98.42 24A EBP-85065-CR Complete red PISTON X 98.42 24A EBP-85070-CV Complete green PISTON X 98.42 24A EBP-85070-CR Complete red PISTON X 98.42 24A EBP-85080-CV Complete green PISTON X 98.42 24A EBP-85080-CR Complete red PISTON X 98.42 24A EBP-85085-CV Complete green PISTON X 98.42 24A EBP-85085-CR Complete red PISTON X 98.42 24A EBP-85095-CV Complete green PISTON X 98.42 24A EBP-85095-CR Complete red PISTON X 98.42 24A EBP-85100-CV Complete green PISTON X 98.42
PARILLA LEOPARD Fig. Code Description List Price 125cc 22 B-30320-RPiston PIN 1^ sel. X 20.78 22 B-30320-B Piston PIN 2^ sel. X 20.78 22 B-30320-G Piston PIN 3^ sel. X 20.78 23 10341-A CIRCLIP X 1.09 24A BP-25051-CV Complete green PISTON X 107.53 24A BP-25051-CR Complete red PISTON X 107.53 24A BP-25056-CV Complete green PISTON X 107.53 24A BP-25056-CR Complete red PISTON X 107.53 24A BP-25058-CV Complete green PISTON X 107.53 24A BP-25058-CR Complete red PISTON X 107.53 24A BP-25061-CV Complete green PISTON X 107.53 24A BP-25061-CR Complete red PISTON X 107.53 24A BP-25066-CV Complete green PISTON X 107.53 24A BP-25066-CR Complete red PISTON X 107.53 24A BP-25068-CV Complete green PISTON X 107.53 24A BP-25068-CR Complete red PISTON X 107.53 24A BP-25071-CV Complete green PISTON X 107.53 24A BP-25071-CR Complete red PISTON X 107.53 24A BP-25076-CV Complete green PISTON X 107.53 24A BP-25076-CR Complete red PISTON X 107.53 24A BP-25081-CV Complete green PISTON X 107.53 24A BP-25081-CR Complete red PISTON X 107.53 24A BP-25086-CV Complete green PISTON X 107.53 24A BP-25086-CR Complete red PISTON X 107.53

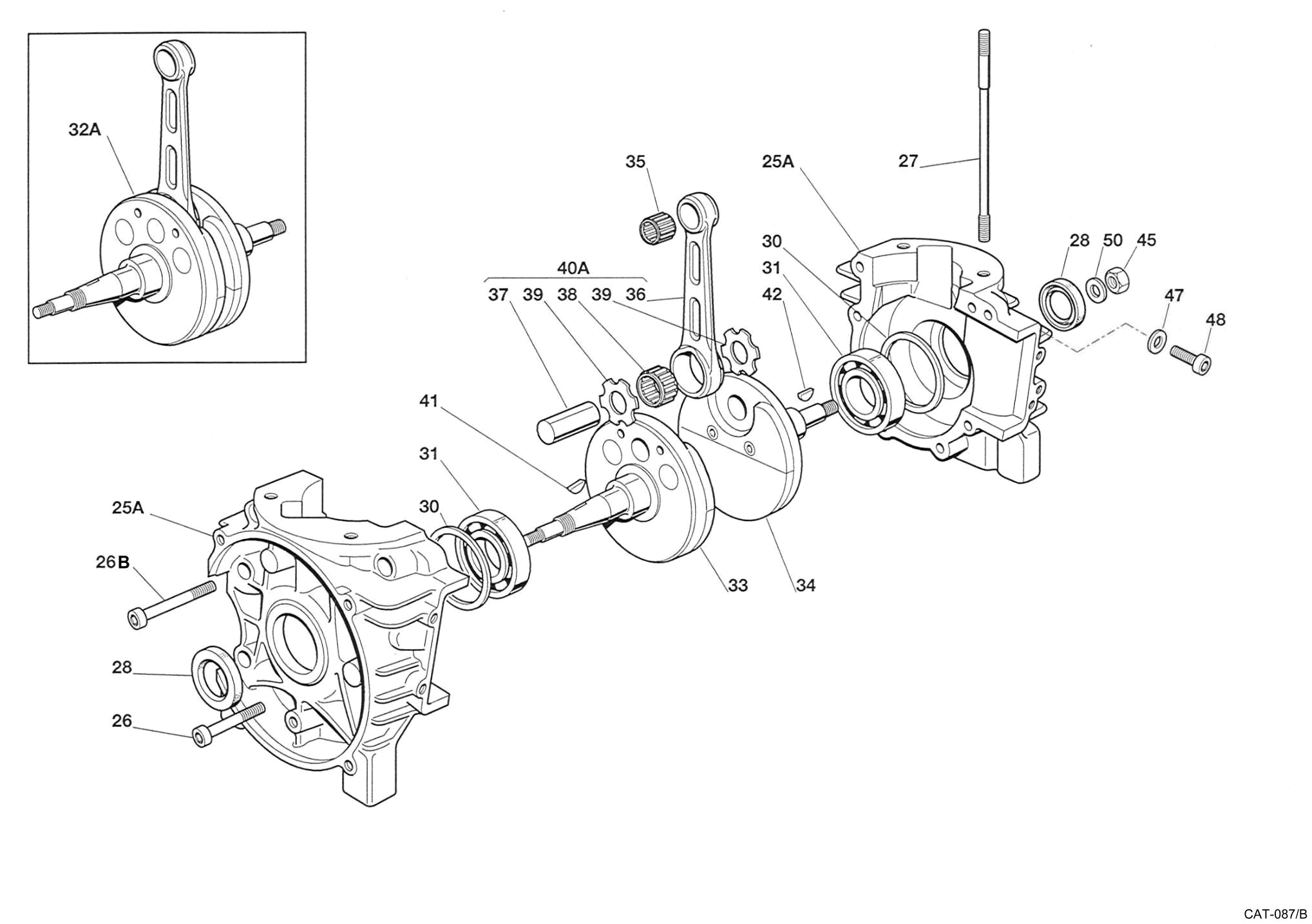

PARILLA LEOPARD Fig. Code Description List Price 100cc 125cc 25A A-125485A Complete CRANKCASE X X 501.55 26 .00049 Crankcase SCREW X X 0.64 26B .00051 Crankcase SCREW X X 1.04 27 B-25347 Cylinder TIE-ROD X X 8.75 28 F-10425 Drive side OIL SEAL X X 10.94 28 F-10425 Magneto side OIL SEAL X X 10.94 30 30407 Steel SHIM X X 2.19 30 30404 Steel SHIM X X 2.19 31 35396 BALL BEARING 6205 X X 21.87 32A A-125617 Complete CRANKSHAFT X X 612.36 33 A-125385 Drive s.HALF CRANKSHAFT X X 178.61 34 A-125390 Magn.s.HALF CRANKSHAFT X X 170.59 35 E-10440 Small end CAGE X X 29.53 36 DBP-95458 CONROD X X 212.14 37 B-36451 CRANKPIN X X 21.87 38 B-10431 Big end CAGE 15 R X X 32.08 39 E-38436 Bronze WASHER X X 5.47 40A DBP-95458-47 Complete selected CONRODX X 288.68 41 11715 Sprocket KEY X X 2.19 42 10375 Magneto KEY X X 2.19 45 .00380 Magneto NUT X X 1.09 47 00302 WASHER X X 0.26 48 00059 Fixing cable SCREW X X 1.09 50 .00340 WASHER X X 0.26
PARILLA LEOPARD

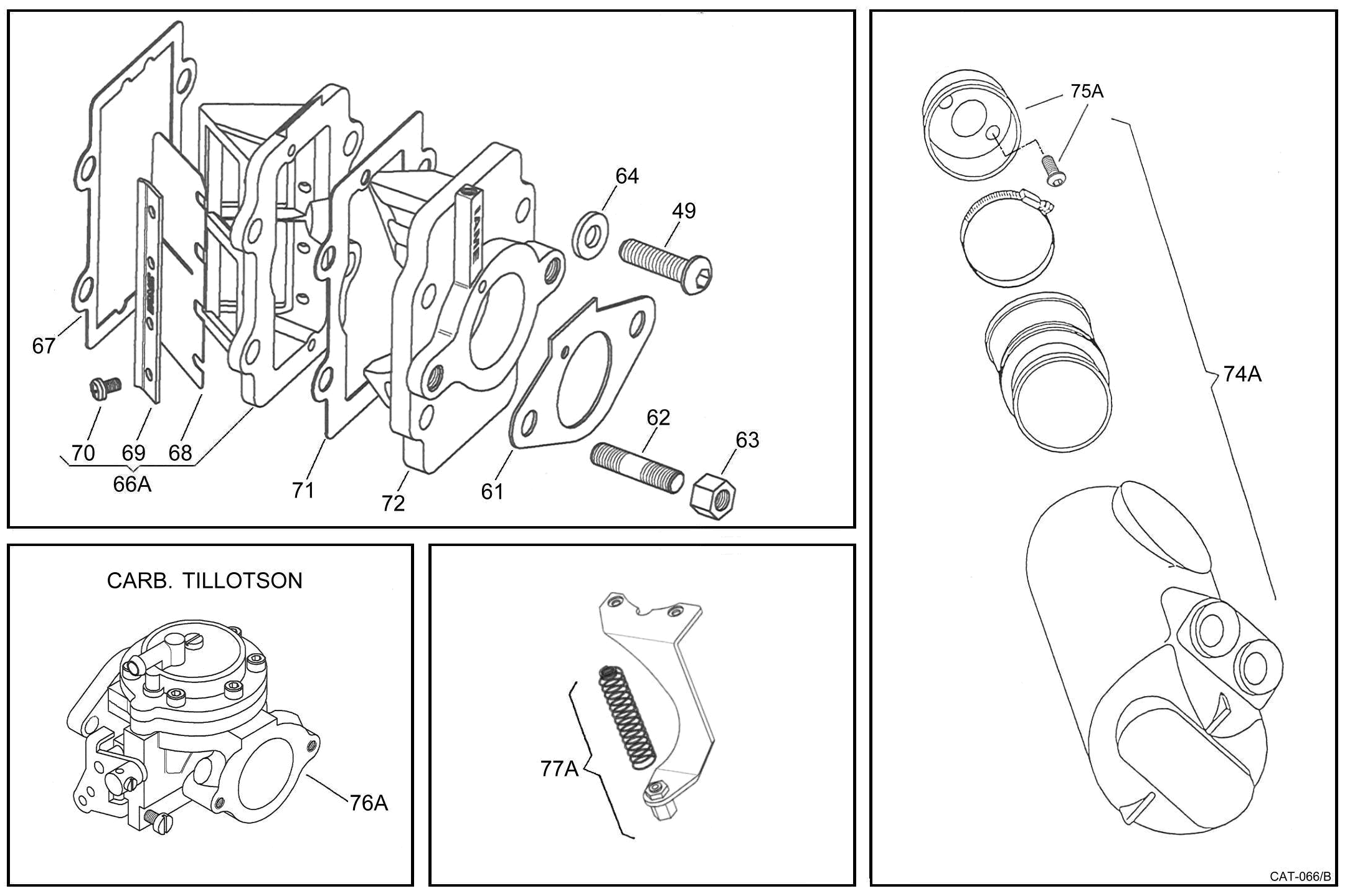

Fig. Code Description List 100cc 125cc 49 .00265 Reed group SCREW X X 0.64 61 10360-A Carburetor GASKET X X 2.19 62 10525 Carburetor STUDBOLT X X 3.28 63 .00351 Studbolt NUT X X 0.43 64 .00302 Screw WASHER X X 0.43 66A 11828-A Rubber coated REED GROUP X X 55.40 67 11810 Crankcase manifold GASKET X X 2.19 68 11840 Reed PETAL X X 13.12 69 F-11845 Reeds CLIP X X 2.19 70 10380 Reeds SCREW X X 1.09 71 11805-A Manifold carb GASKET X X 2.19 72 B-75817A Univ. CONVEYOR X X 40.82 74A 10745-C Compl. INTAKE SILENC. X X 64.15 75A 10771-C Intake silencer SUPPORT X X 39.36 76A 10916B Tillotson CARBURETOR X X 161.84 77A B-35520-C Accelerator cable DEVICE X X 15.31
Fig. Code Description List 100cc 125cc 80A A-60520-C Sel.coil DAMPENER KIT w/screws X X 4.37 81 10025 Selettra COIL X X 38.64 82B .00031 Selettra coil SCREW X X 0.25 87 B-35805-A Coil ground CABLE X X 5.47 88 10561-A SPARK PLUG NGK BR10EG X X 25.15 89 10544 PVL Rubber CAP X X 19.68 90A 10015A Selettra IGNITION, n.t. X X 227.45 91 .00034 Selettra ignition SCREW X X 0.48 95 A-60875B Plastic ignition COVER X X 25.15 96 .00043 Ignition cover SCREW X X 0.64 230A A-60930E-C POWER PACK with wires 2003 X X 307.64 231 .00028 Fixing power pack SCREW X X 0.50 231B .00039 Fixing power pack SCREW X X 0.50 232 .00301 WASHER X X 0.43 233 .00376 Loocker NUT X X 0.40 234 A-120905B Battery SUPPORT X X 29.89 235 A-120900 12Volt 7,2Ah BATTERY X X 47.39 235 A-120900A 12Volt 7,2Ah BATTERY n.t. X X 31.35 236 A-60904A Fixing STRIPE for battery X X 10.94 237 .00159 Support Battery SCREW X X 0.50 238A A-60907A-C Two pieces LOCKER w/screws X X 28.43 238A A-60908A-C Two pieces LOCKER w/screws X X 28.43 239 A-60960 Water-proof power-pack COVER X X 40.83 240A A-60919-C Elec.starter CONNECTION w/cable X X 12.03 242A A-60937-C Compl.ignition CONNECTION X X 24.06 243 A-60938 H.T.Coil CONNECTION X X 1.09 244A A-60939-C Compl. CONNECTION Pick-up X X 20.78 245 A-60940 Electric starter CONNECTION X X 3.28 POWER PACK INSIDE SPARESPARILLA POWER PACK SPARES Fig. Code Description 246 A-60941A Voltmeter RELAY X X 28.43 247 A-60942 Fuse CUT-OUT X X 0.66
BACK TO TOP
PARILLA LEOPARD

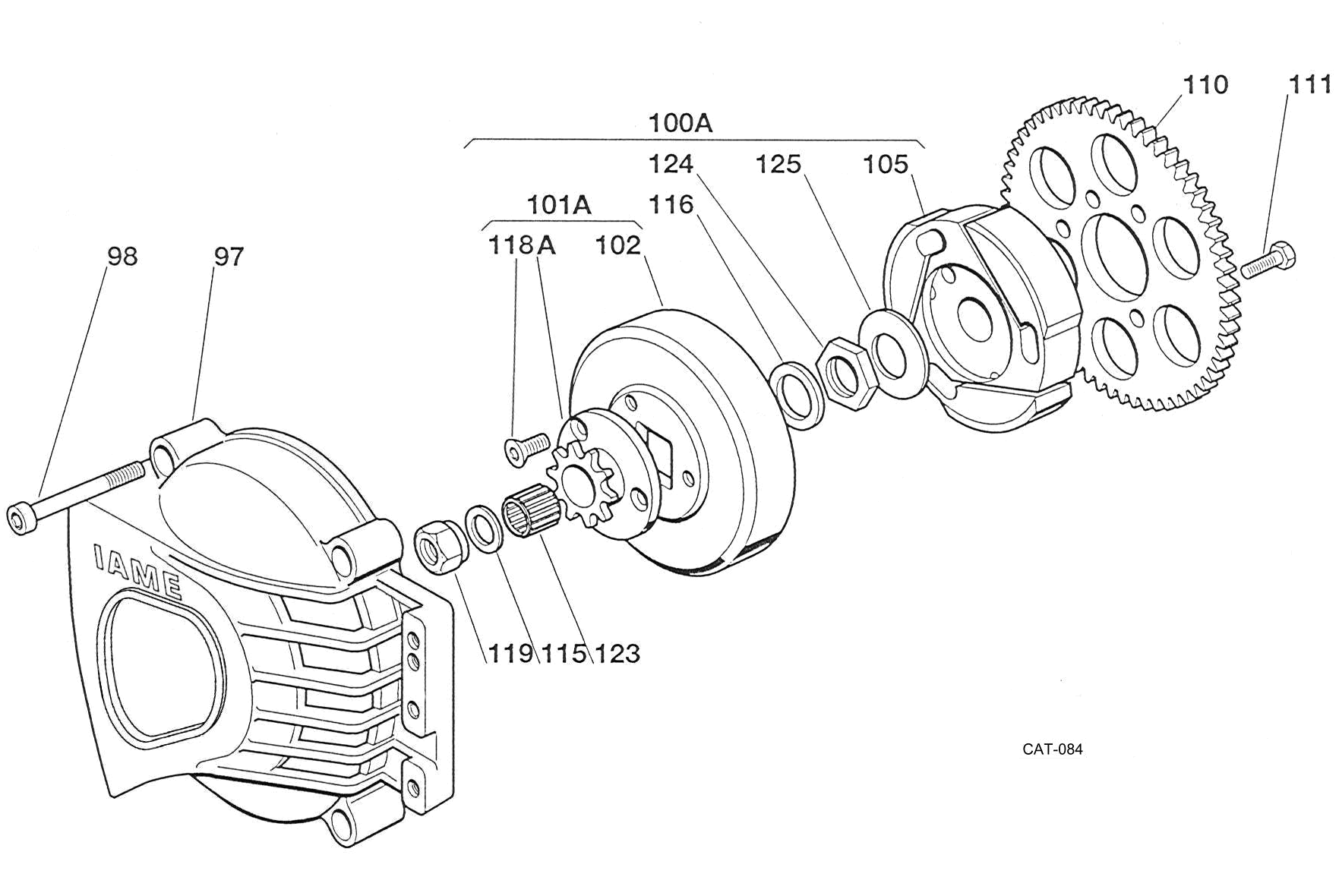

Fig. Code Description List 100cc 125cc 97 A-60595B Clutch GUARD/02 X X 45.20 98 .00048 Guard SCREW X X 0.64 100A A-120841A-C CLUTCH GROUPE Z11 X X 209.95 101A A-60551-C Compl. DRUM w/sprocket Z11 X X 91.13 102 A-60550 DRUM X X 52.49 105 A-120840A Padded HUB X X 116.64 110 A-100830 Starter driver WHEEL X X 45.20 111 .00161 Starter wheel SCREW X X 0.70 115 D-75573 External WASHER X X 2.19 116 D-75565 Trust internal WASHER X X 3.28 118A D-75555-C SPROCKET z11 w/screws X X 41.55 119 D-75570 Starter NUT X X 4.37 123 D-75598 Roller CAGE X X 8.75 124 A-60560 Locking NUT X X 6.56 125 D-75563 WASHER, coned safety X X 3.28
PARILLA LEOPARD

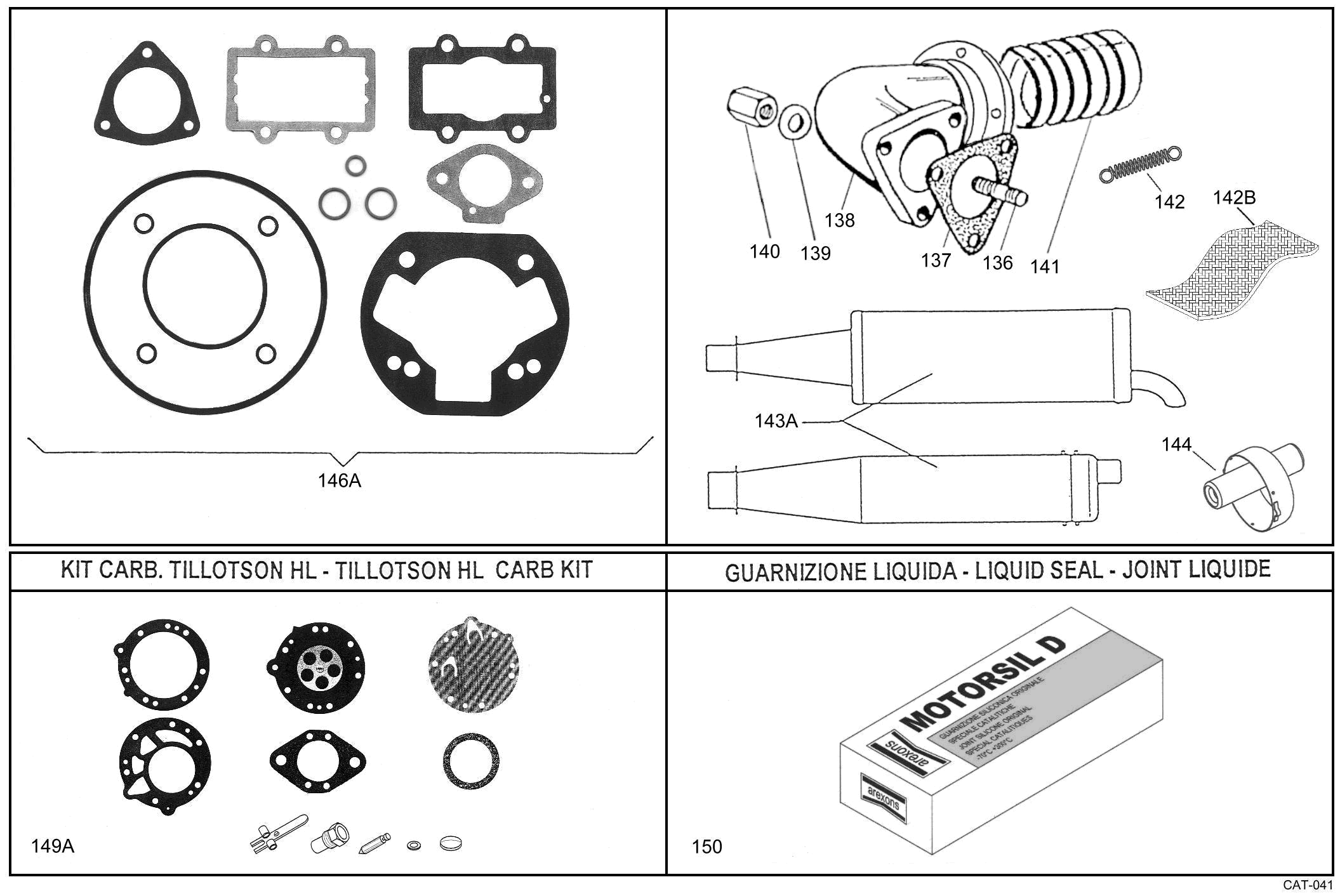

Fig. Code Description List 100cc 125cc 136 10358 Exhaust STUDBOLT X X 3.28 137 B-85360 Exhaust pipe GASKET X X 5.47 138 B-25368-A Exhaust PIPE X X 64.15 138 A-125365 Exhaust PIPE with restrictor X 72.90 138 A-125366 Exhaust PIPE with restrictor X 72.90 139 .00302 Exhaust nut WASHER X X 0.43 140 10660 Exhaust NUT X X 4.37 141 10711-B FLEXIBLE L. 13 cm. X X 9.84 142 10785 Flexible SPRING X X 4.37 142B A-60735 FIBER STRIP for flex X X 7.65 143A 10718 Special SILENCER X X 110.08 143A B-10739-B SILENCER RL-POP X X 227.45 144 10721-A Spec/CIK silencer END X X 41.55 146A B-85990 Gaskets SET X 26.24 146A G-85990 Gaskets SET X 26.24 149A 10926 KIT for Tillotson carburetor X X 33.53 150 .00602 Liquid GASKET X X 36.09
PARILLA LEOPARD

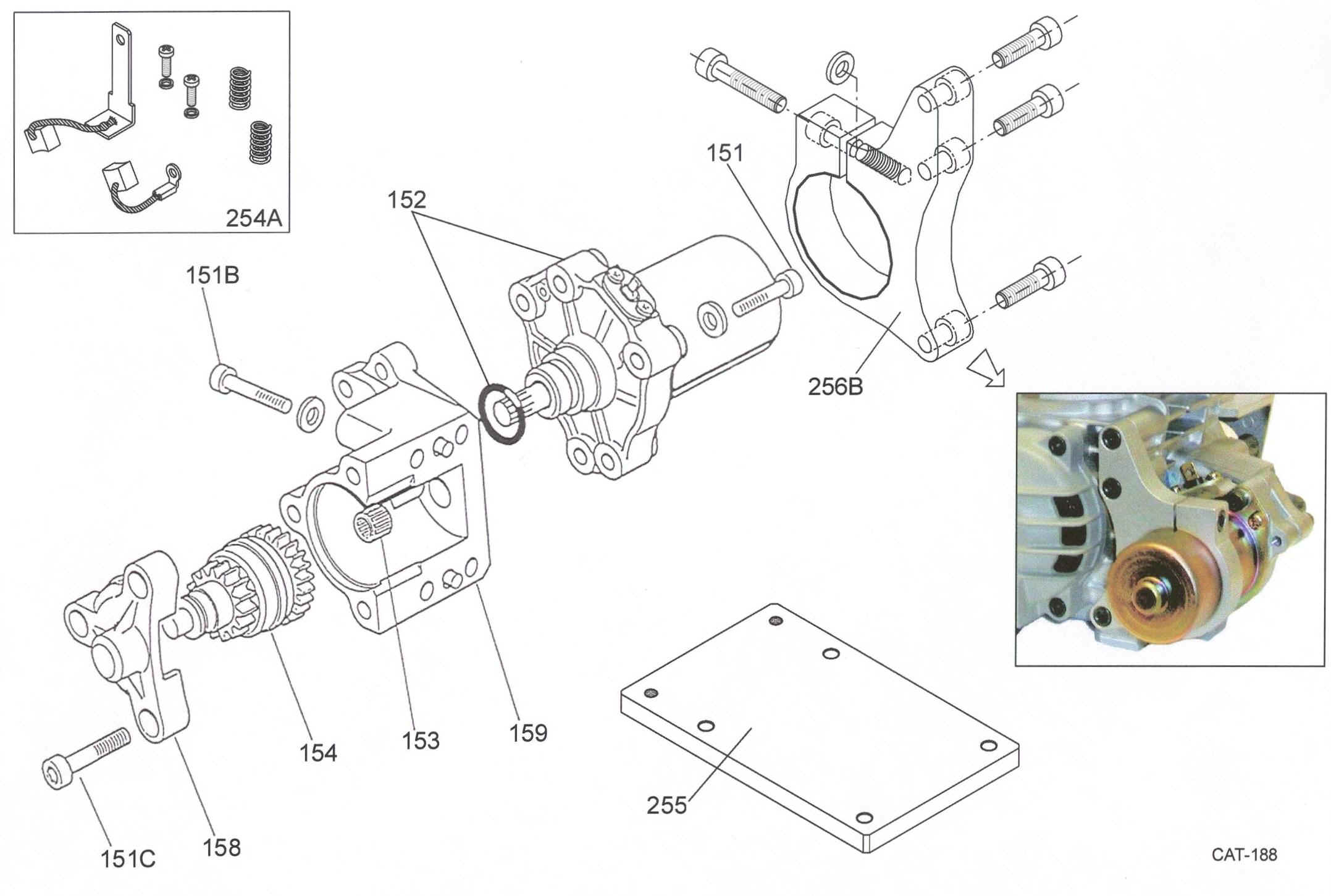

Fig. Code Description List 100cc 125cc 151 .00047 Fixing starter SCREW X X 0.64 151B .00049 Fixing starter support SCREW X X 0.64 151C .00045 Countershaft support SCREW X X 0.64 152 A-120850 STARTER X X 178.61 153 A-60865 Roller CAGE X X 7.65 154 A-120855 COUNTERSHAFT X X 83.84 158 A-60870 Countershaft SUPPORT X X 10.94 159 A-120860 Starter SUPPORT X X 75.82 254A A-60851A-C KIT of brushes for starter X X 32.81 255 A-120800 Additional engine PLATE X X 34.26 256B A-125863-C Starter suppl. SUPPORT X X 37.91
PARILLA LEOPARD

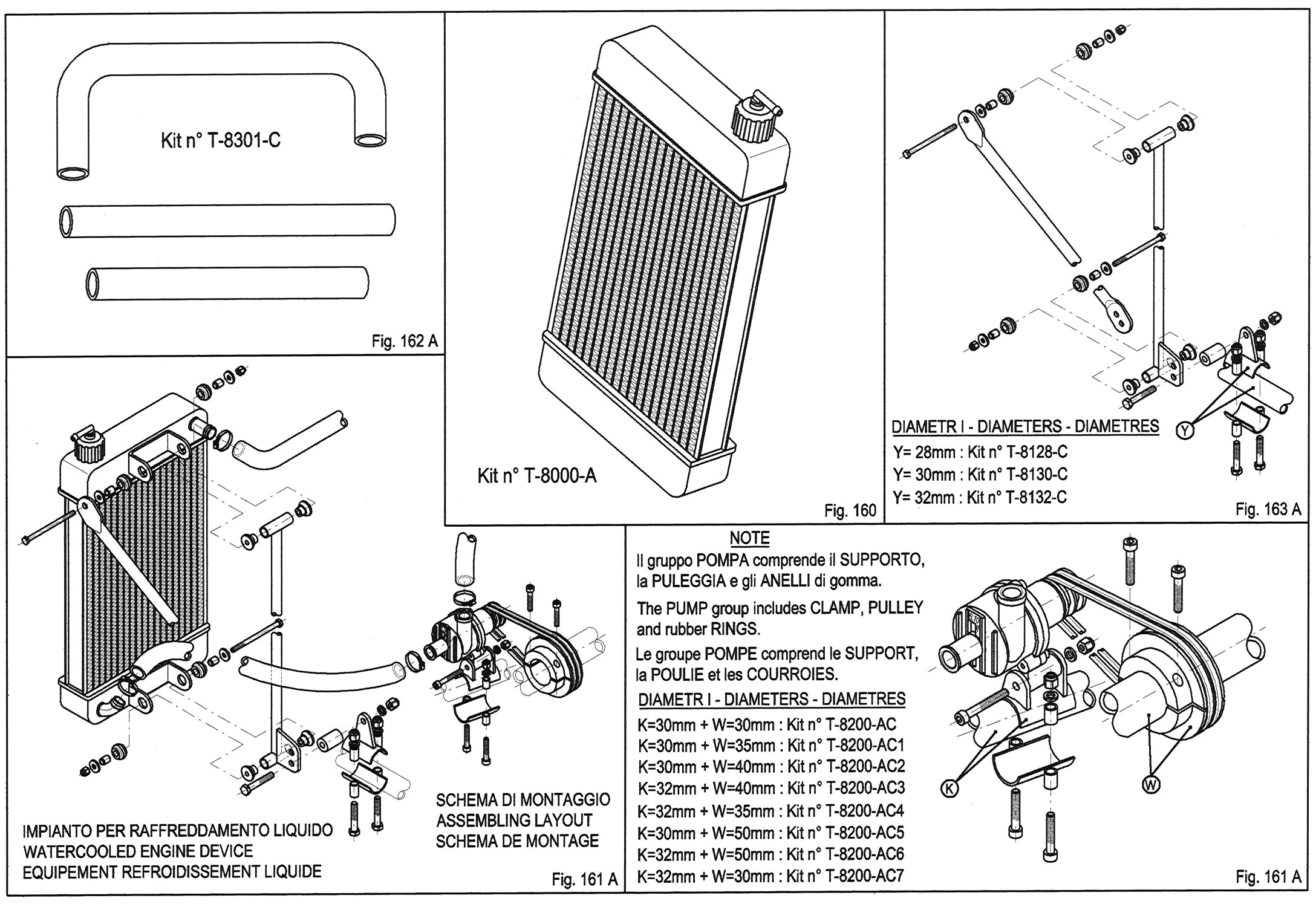

Fig. Code Description List 100cc 125cc 160 T-8000A RADIATOR X X 142.88 161A T-8200-AC2 Complete PUMP group X X 178.61 161A T-8200-AC3 Complete PUMP group X X 178.61 161A T-8200-AC6 Complete PUMP group X X 178.61 162A T-8301-C Complete PIPE kit X X 36.45 163A T-8130-C RADIATOR SUPPORTS kit X X 72.90 163A T-8132-C RADIATOR SUPPORTS kit X X 72.90 164A T-8400-C THERMOSTAT 50° compl. X X 101.33
Fig. Code Description List

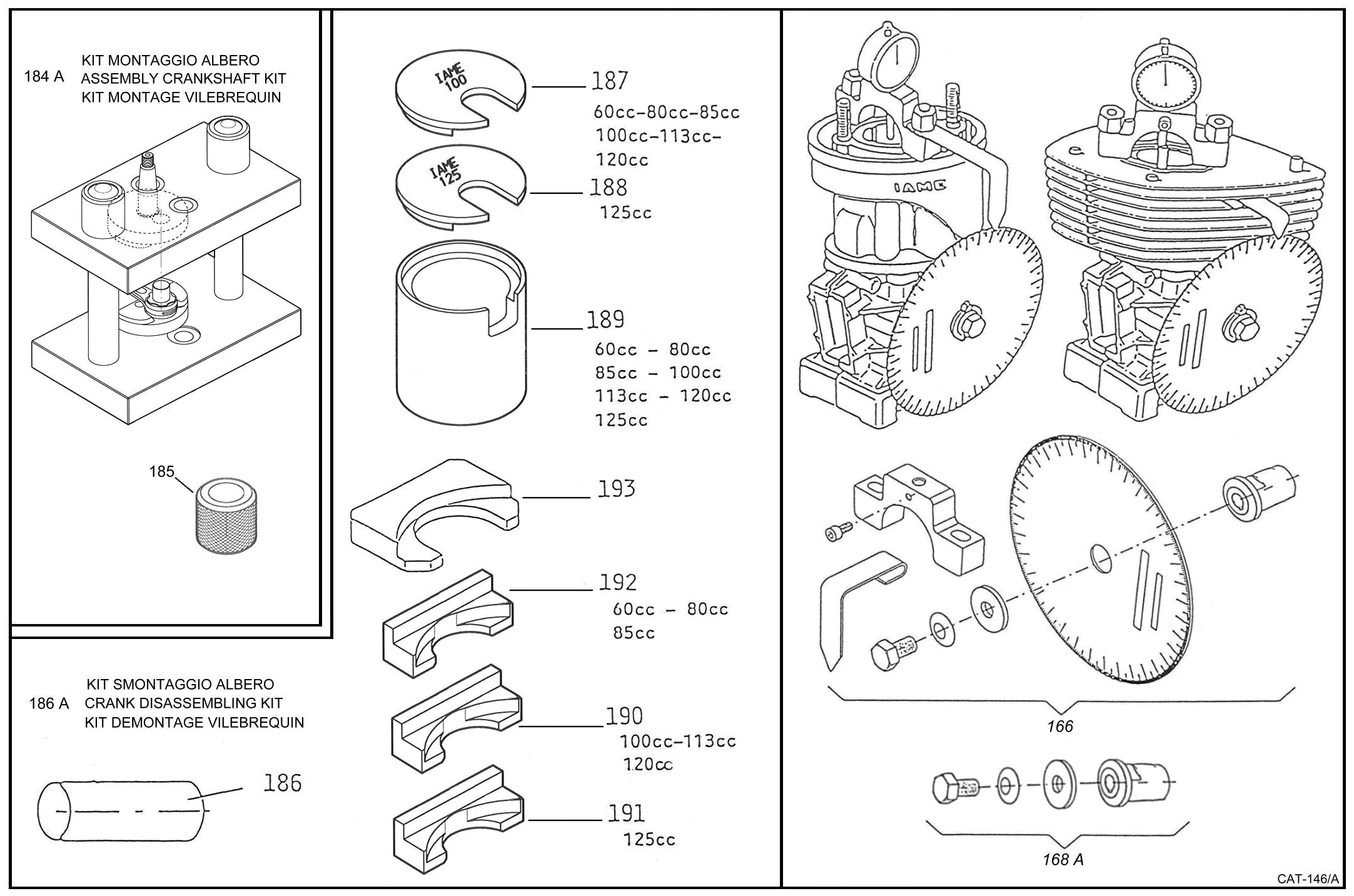

100cc 125cc 166 10822 Selettra-TaG timing group X X 88.94 168A 10827A-C TaG complete timing group adapter X X 20.78 184A 10110-C Assembly crankshaft KIT X X 1,163.48 185 10150 Crank-pin BUSH X X 49.57 186A 10100-C2 Crank disassembling KIT X X 199.75 186 10107 Crank-pin PULLER X X 8.75 188 10104 Crankshaft PLATE X X 61.24 189 10100 Disassembling TOOL X X 102.06 191 10106 Crankshaft INSERT X X 34.26

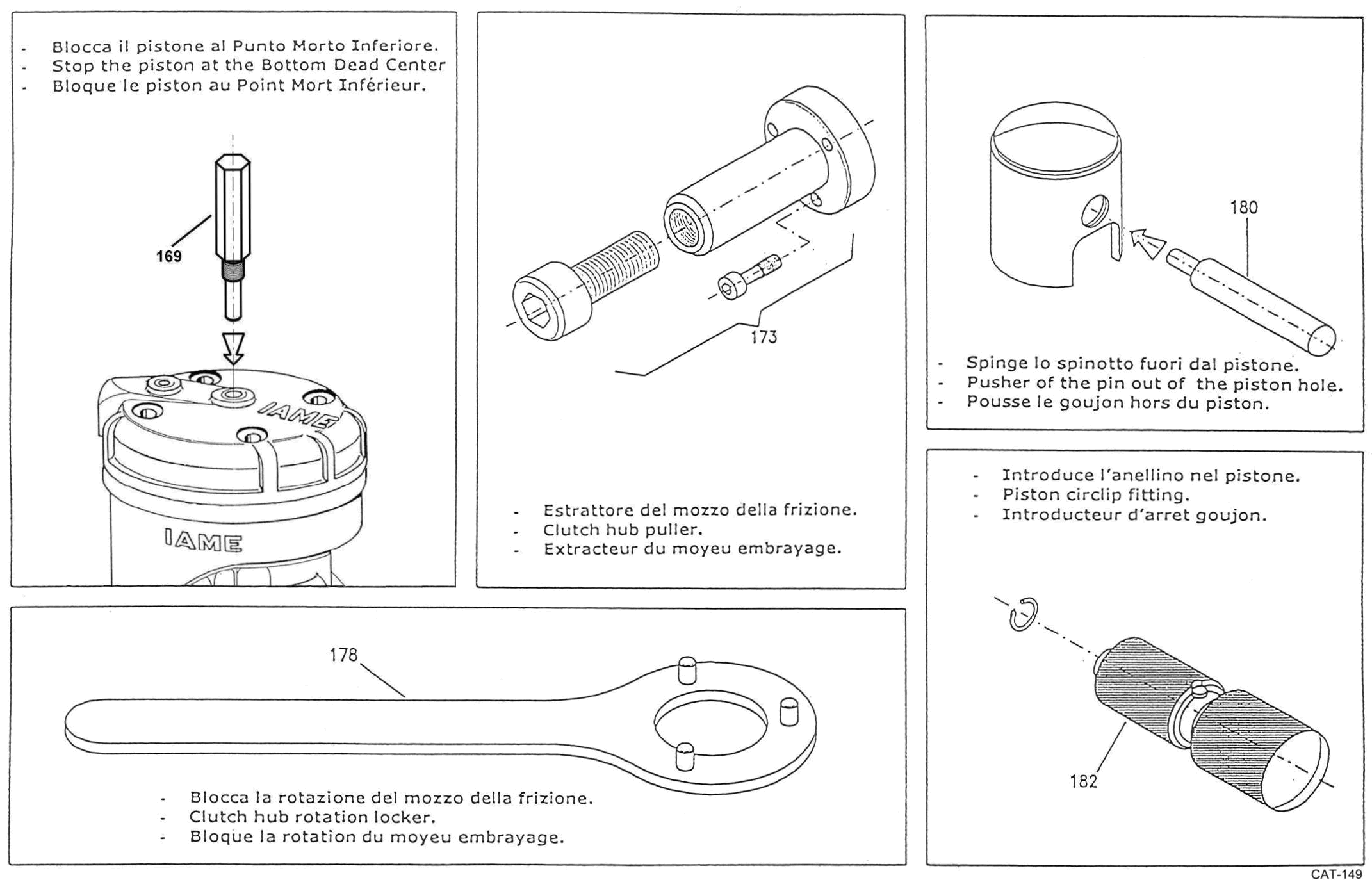

PARILLA LEOPARD 100cc 125cc 169 10271 Piston stroke LOCKER X X 39.37 173 B-55614-C Clutch PULLER X X 42.65 178 10270 Clutch lock. WRENCH X X 29.52 180 10200 Piston pin PUNCH X 16.40 180 10201 Piston pin PUNCH X 16.40 182 10120 Circlip assembling TOOL X X 102.06
