Intrepid Parts Page Two
| CODE | DESCRIPTION | PRICE |

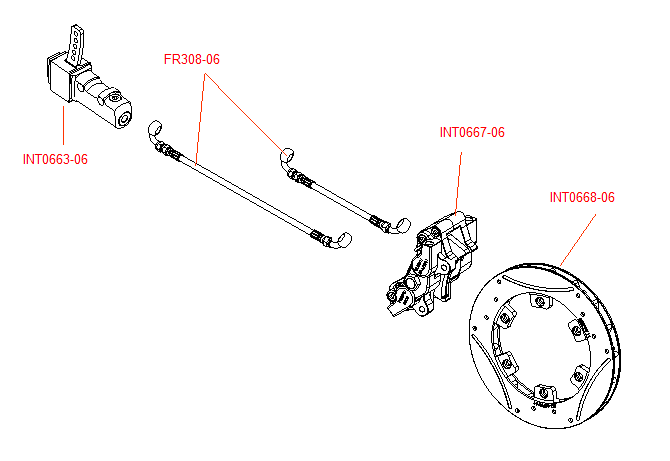

| INT0690-06 | REAR BRAKING SYSTEM EVO8 100cc - ( 89-1/FR/11 ) | $661.20 |
| INT0663-06 | Brake pump INTREPID Ø19mm | $140.71 |
| FR308-06 | Rear brake pipe KIT L.160/680mm w/eyelets-CIK-FIA approval-EVO5 Plus | $57.68 |
| INT0667-06 | Rear brake caliper EVO8 | $321.21 |
| INT0668-06 | Rear brake disk - self-ventilated -Ø200x16mm | $142.04 |

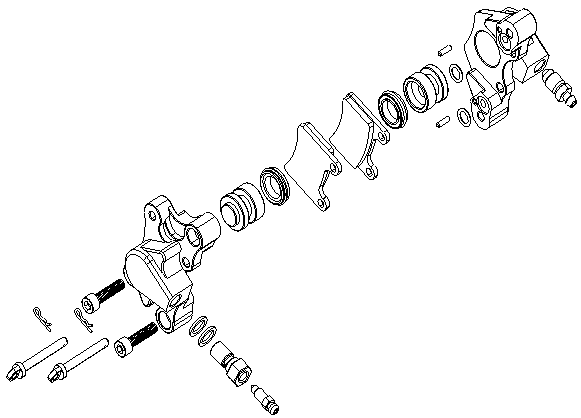

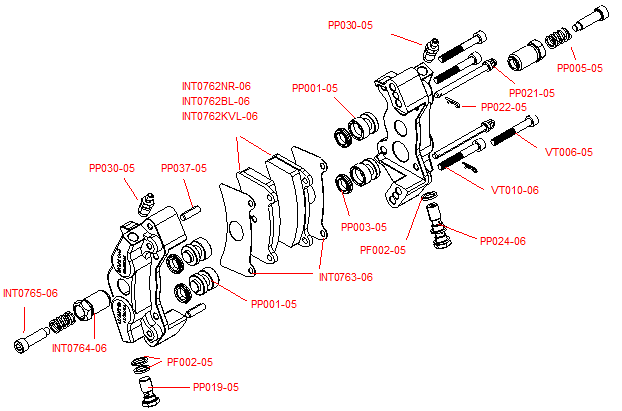

Caliper EV08
| CODE | DESCRIPTION | PRICE |
| INT0667-06 | Rear brake caliper EVO8 | $321.21 |
| PP005-05 | Spring for rear pad recovery - Tropicalized | $1.75 |
| PP037-05 | Centering pin 6 x20mm grounded - for rear brake caliper | $1.29 |
| PP021-05 | Safety pin for rear brake caliper- Tropicalized | $6.00 |
| PP022-05 | Safety split pin | $0.91 |
| PP030-05 | Breather 10x1 galvanyzed - yellow | $4.03 |
| PF002-05 | Copper washer Ø14x10x1,5 mm | $0.53 |
| PP019-05 | Screw 10x1 mm for oil pipe connection | $4.33 |
| INT0762NR-06 | Brake pad EVO8 - black- soft | $27.36 |
| INT0762BL-06 | Brake pad EVO8 - blue - medium | $27.36 |
| INT0762KVL-06 | Brake pad EVO8 - KEVLAR- special | $44.69 |
| INT0763-06 | Lining for brake pad EVO8 | $3.65 |
| INT0764-06 | Guide screw for spring - brake system EVO8 | $5.24 |
| INT0765-06 | Screw for pads recovery -EVO8 | $1.79 |
| VT046-06 | Cylindric screw M6 x 45 galvanyzed | $1.44 |
| VT006-05 | Screw - cylindric head - hexagonal slot - M6x50 | $1.82 |
| PP001-05 | Special steel piston Ø19 with rubber | $9.96 |
| PP003-05 | Oil locking rubber Ø19 mm | $2.20 |
| PP024-06 | Double screw for oil pipe connnection | $4.33 |

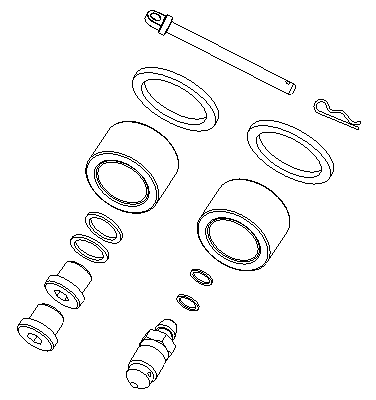

Caliper Repair Kit
| CODE | DESCRIPTION | PRICE |
| PP038-06 | SPARES KIT FOR BRAKE CALIPER EVO8 | $91.20 |
| PP005-05 | Spring for rear pad recovery - Tropicalized | $1.75 |
| PP021-05 | Safety pin for rear brake caliper- Tropicalized | $6.00 |
| PP022-05 | Safety split pin | $0.91 |
| PP030-05 | Breather 10x1 galvanyzed - yellow | $4.03 |
| PF002-05 | Copper washer Ø14x10x1,5 mm | $0.53 |
| INT0763-06 | Lining for brake pad EVO8 | $3.65 |
| INT0764-06 | Guide screw for spring - brake system EVO8 | $5.24 |
| INT0765-06 | Screw for pads recovery -EVO8 | $1.79 |
| PP001-05 | Special steel piston Ø19 with rubber | $9.96 |
| PP003-05 | Oil locking rubber Ø19 mm | $2.20 |

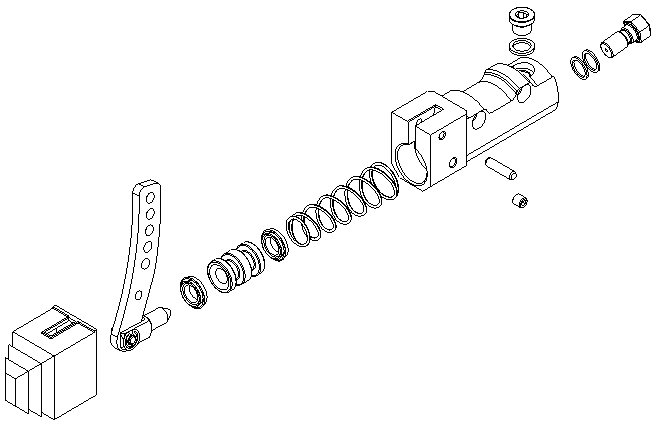

Brake Pump EV08
| CODE | DESCRIPTION | PRICE |
| INT0663-06 | Brake pump INTREPID Ø19 mm | $140.71 |
| PF001-05 | Threaded cap 10x1mm | $2.13 |
| PF002-05 | Copper washer Ø14x10x1,5 mm | $0.61 |
| PF012-05 | Centering pin 5x20 grounded | $1.18 |
| PF013-05 | Safety dowel Ø6x6 | $0.65 |
| PP003-05 | Oil locking rubber Ø19 mm | $2.43 |
| PF015RS-05 | Outside dusty cap for Brake Pump - RED | $9.69 |
| PF009-06 | Fixed lever complete with piston-pusher for brake pump EVO8 | $20.18 |
| PF014-06 | Brass piston Ø19mm | $11.13 |
| PF051-05 | Helicoidal spring Ø19 mm for brake pump | $3.38 |
| PP019-05 | Screw 10x1 mm for oil pipe connection | $4.33 |

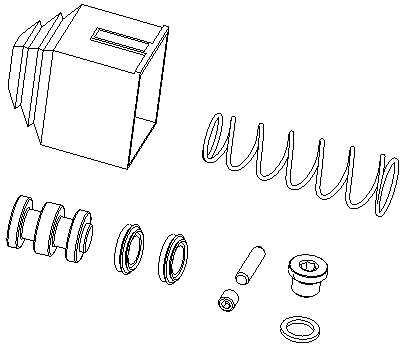

Brake Pump Repair Kit
| CODE | DESCRIPTION | PRICE |
| PF003-06 | SPARES KIT FOR INTREPID BRAKE PUMP Ø19mm | $31.92 |
| PF001-05 | Threaded cap 10x1mm - BLACK | $1.90 |
| PF002-05 | Copper washer Ø14x10x1,5 mm | $0.53 |
| PF012-05 | Centering pin 5x20 grounded | $1.06 |
| PF013-05 | Safety dowel Ø6x6 | $0.61 |
| PP003-05 | Oil locking rubber Ø19 mm | $2.20 |
| PF015RS-05 | Outside dusty cap for Brake Pump - RED | $8.70 |
| PF014-06 | Brass piston Ø19mm | $10.03 |
| PF051-05 | Helicoidal spring Ø19 mm for brake pump | $3.04 |

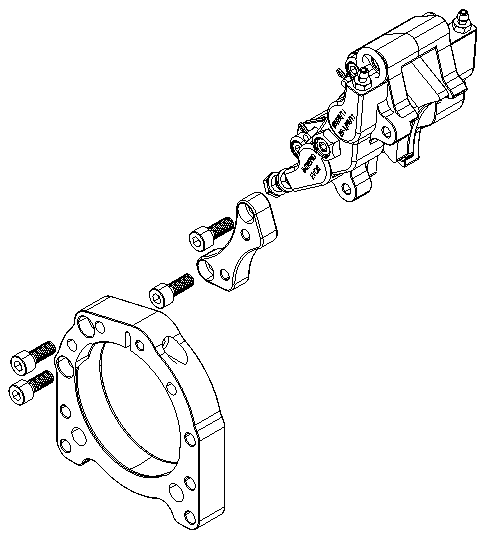

Caliper Fastening Kit
| CODE | DESCRIPTION | PRICE |
| PF018-06 | Brake caliper fastening kit EVO 8 | $29.03 |
| VT089-06 | Cylindric screw M8 x 25 galvanyzed | $1.44 |
| VT088-06 | Cylindric screw M8x20 galvanyzed | $1.22 |
| PP039-06 | Plate for brake caliper EVO 5 Plus | $24.24 |

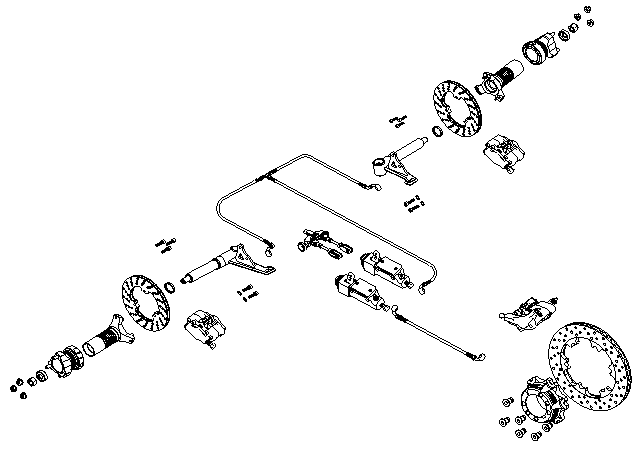

Braking System EV03ET
| CODE | DESCRIPTION | PRICE |
| INT0643-06 | BRAKING SYSTEM EVO3ET FOR 125cc. Omologato (164/164-1/FR/08) | $2,399.13 |
| INT0706-06 | Right spindle - INTREPID Ø25mm - 125cc Holed - 11,25° PH2 | $161.50 |
| INT0707-06 | Left spindle - INTREPID Ø25mm - 125cc Holed - PH2 | $161.50 |
| FR361TT-06 | Front hub Ø42x75 mm - 8 mm slot - detachable ledge - Anod. TITANIUM | $54.15 |
| FR038TT-06 | Front hub support for Ø25mm spindle -125 cc. - Anod. TITANIUM | $73.53 |
| INT0103-05 | Brake pump Ø19mm with inner oil recovery tank - type approval CIK-FIA - TITANIUM | $163.48 |
| FR673AG-06 | Brake pipe with eyelet L.680 mm - steel shealth - SILVER | $38.30 |
| INT0417-05 | EVO 3ET rear brake caliper with 2 pistons Ø 26mm CIK FIA approval | $285.00 |

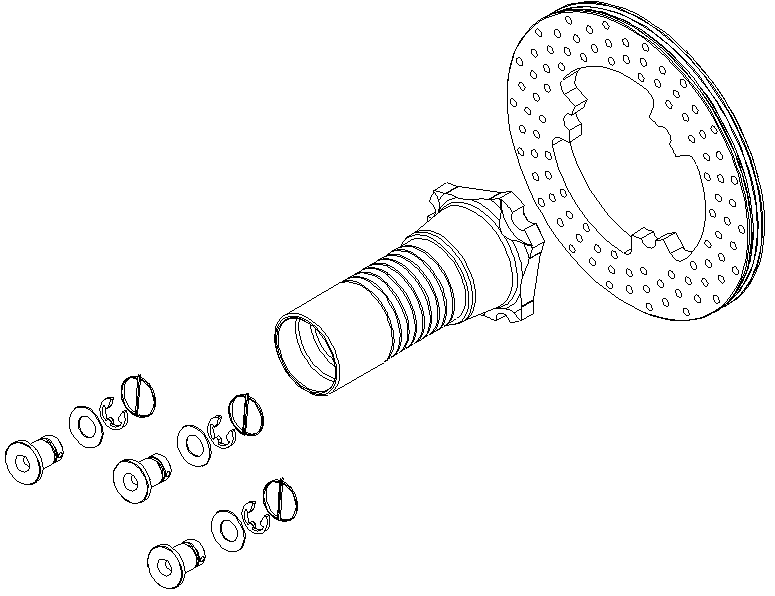

| DF021-05 | Floating rear cast iron brake disk - self-ventil. - 6 attachment - CIK approval EVO 3/4 | $120.38 |
| PD025-05 | Ergal flotting brake disk support Ø 50 – 6 fixing kit - EVO 3 | $75.24 |
| KT001-05 | KIT of floating bush - for disk Ø190 - complete (made of 6 set) | $51.98 |
| INT0424-05 | Ø50 axle flotting disk KIT with disk support and 6 fixing kit | $240.77 |
| FR310-06 | Rear brake pipe KIT with eyelets - L. 430/300/685 mm - CIK-FIA approval | $83.45 |
| INT0039-05 | Right self-ventilated Ø158mm front brake disk | $106.51 |
| INT0040-05 | Left self-ventilated Ø158mm front brake disk | $106.51 |
| INT0099-05 | Front brake caliper with pistons Ø26mm Type approval CIK FIA | $267.71 |
| FR046-05 | Ergal braking distribution for brake pump - fixed levers | $71.14 |
| VT032-06 | Nut for rim hub clamping M8-flanged-self lock | $1.18 |
| VT004-05 | Bush Ø6x11mm | $0.57 |
| FS037-06 | Steel Ø10x25 spindle lining for wheel rim - BLACK | $2.74 |
| FS038-06 | Steel Ø10x25 spindle lining for wheel rim - BLACK | $9.58 |
| VT085-06 | Cylindric screw M6x18 galvanyzed | $1.06 |
| FS008-05 | Ø14x1,5mm selflocking nut | $1.71 |
| VT081-06 | Cylindric screw M5x14 galvanyzed | $0.84 |

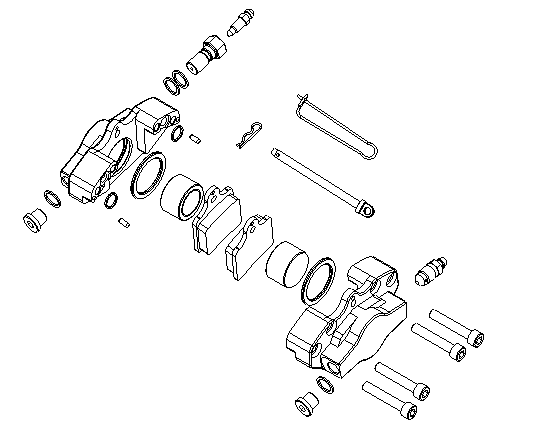

Front Caliper EV03ET
| CODE | DESCRIPTION | PRICE |
| INT0099-05 | Front brake caliper with pistons Ø26mm Type approval CIK FIA | $267.71 |
| PP023-05 | Kit of bolt M10x1mm - breather-washer-for front brake caliper EVO 3 | $3.76 |
| PF002-05 | Copper washer Ø14x10x1,5 mm | $0.53 |
| PP027-05 | Rubber belt for oil seal | $0.61 |
| PF001-05 | Threaded cap 10x1mm - BLACK | $1.90 |
| PP028-05 | Rubber Ø26mm square section | $1.44 |
| PP015-05 | Centering pin 3x10mm grounded | $0.91 |
| PP022-05 | Safety split pin | $0.91 |
| PP029-05 | Steel piston Ø26mm with magnet | $10.18 |
| PP032NR-05 | Brake pad front/rear - Th 7mm - BLACK | $20.52 |
| PP032BL-05 | Brake pad front/rear - Th. 7mm - BLUE | $20.52 |
| PP032VR-05 | Brake pad front/rear - Th. 7mm - GREEN | $30.02 |
| PP025-05 | Safety clip for rear brake pad | $1.14 |
| PP026-05 | Safety pin for brake caliper - L. 51mm | $5.70 |
| PP030-05 | Breather 10x1 galvanyzed - yellow | $4.03 |
| VT007-05 | Cylindric screw M6 x 35 galvanyzed | $1.03 |
Front Caliper Repair Kit EV03ET
| CODE | DESCRIPTION | PRICE |
| FR380-06 | Spare parts KIT for front brake caliper INT0099-05 | $50.16 |
| PF001-05 | Threaded cap 10x1mm - BLACK | $1.90 |
| PF002-05 | Copper washer Ø14x10x1,5 mm | $0.53 |
| PP022-05 | Safety split pin | $0.91 |
| PP023-05 | Kit of bolt M10x1mm - breather-washer-for front brake caliper EVO 3 | $3.76 |
| PP026-05 | Safety pin for brake caliper - L. 51mm | $5.70 |
| PP027-05 | Rubber belt for oil seal | $0.61 |
| PP028-05 | Rubber Ø26mm square section | $1.44 |
| PP029-05 | Steel piston Ø26mm with magnet | $10.18 |
| PP030-05 | Breather 10x1 galvanyzed - yellow | $4.03 |

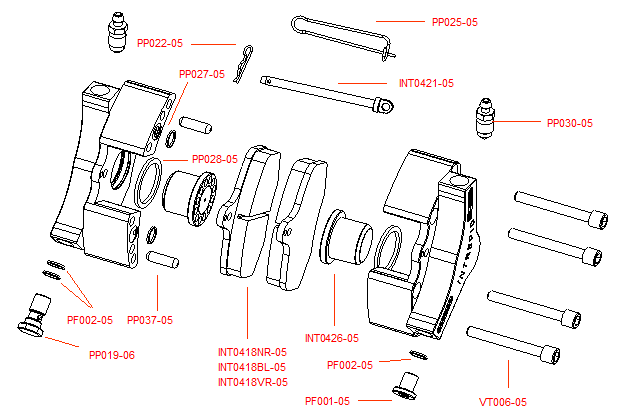

Rear Caliper EV03ET
| CODE | DESCRIPTION | PRICE |
| INT0417-05 | EVO3ET rear brake caliper with 2 pistons Ø 26mm CIK FIA approval | $285.00 |
| PP025-05 | Safety clip for rear brake pad | $1.14 |
| INT0418BL-05 | Rear brake pads BLUE | $26.60 |
| INT0418NR-05 | Rear brake pad BLACK | $26.60 |
| INT0418VR-05 | Rear brake pad GREEN | $42.18 |
| PF001-05 | Threaded cap 10x1mm - BLACK | $1.90 |
| PF002-05 | Copper washer Ø14x10x1,5 mm | $0.53 |
| PP027-05 | Rubber belt for oil seal | $0.61 |
| PP028-05 | Rubber Ø26mm square section | $1.44 |
| PP030-05 | Breather 10x1 galvanyzed - yellow | $4.03 |
| PP037-05 | Centering pin Ø6x20 mm for rear brake caliper | $1.29 |
| INT0426-05 | Steel flanged piston Ø26mm with magnete | $31.46 |
| INT0421-05 | Safety pin for brake caliper - L. 70mm | $6.16 |
| PP022-05 | Safety split pin | $0.91 |
| PP019-06 | Screw 10x1 mm for oil pipe connection | $4.33 |
| VT006-05 | Cylindric screw M6 x 50 galvanyzed | $0.19 |

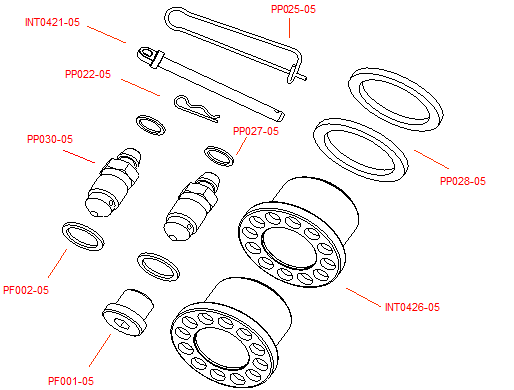

Rear Caliper Repair Kit
| CODE | DESCRIPTION | PRICE |
| INT0750-06 | Rear caliper spare kit INT0417-05 | $91.20 |
| PP025-05 | Safety clip for rear brake pad | $1.14 |
| INT0421-05 | Safety pin for brake caliper - L. 70mm | $6.16 |
| PF001-05 | Threaded cap 10x1mm - BLACK | $1.90 |
| PF002-05 | Copper washer Ø14x10x1,5 mm | $0.53 |
| PP022-05 | Safety split pin | $0.91 |
| PP027-05 | Rubber belt for oil seal | $0.61 |
| PP028-05 | Rubber Ø26mm square section | $1.44 |
| PP030-05 | Breather 10x1 galvanyzed - yellow | $4.03 |
| INT0426-05 | Steel flanged piston Ø26mm with magnete | $31.46 |

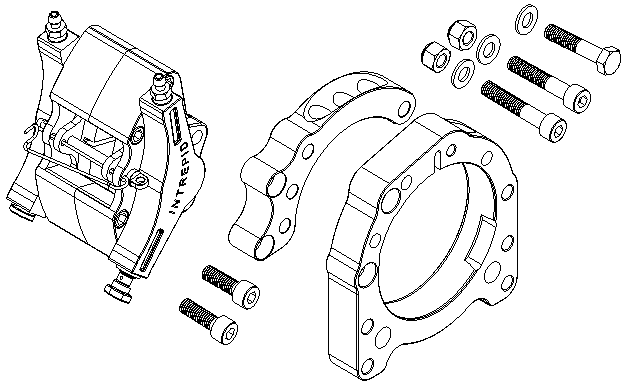

Rear Caliper Fastening Kit
| CODE | DESCRIPTION | PRICE |
| INT0748-06 | EVO3ET REAR BRAKE CALIPER FASTENING KIT | $43.32 |
| INT0131-05 | Rear brake caliper support | $39.82 |
| VT089-06 | Screw - cylindric head M8 x 25 galvanyzed | $1.22 |
| VT002-06 | Screw - cylindric head - hexagonal slot - M8x45 | $1.75 |
| VT020-05 | Screw - hexagonal head - slot - M8x40 | $1.44 |
| VT118-06 | Washer Ø8x13mm | $0.68 |
| VT036-06 | Metalblock nut M8 | $1.22 |
| VT033-05 | Cylindric screw M8x40 galvanyzed | $1.52 |

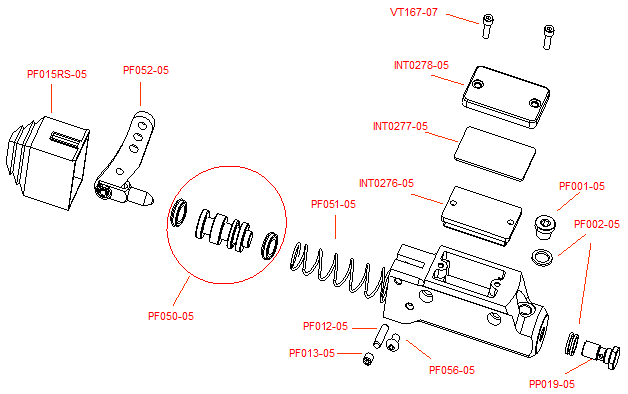

Brake Pump EV03ET
| CODE | DESCRIPTION | PRICE |
| INT0103-05 | Brake pump Ø19mm with inner oil recovery tank - type approval CIK-FIA - TITANIUM | $163.48 |
| PF001-05 | Threaded cap 10x1mm - BLACK | $1.90 |
| PF002-05 | Copper washer Ø14x10x1,5 mm | $0.53 |
| PF012-05 | Centering pin 5x20 grounded | $1.06 |
| PF013-05 | Safety dowel Ø6x6 | $0.61 |
| PF015RS-05 | Outside dusty cap for Brake Pump - RED | $8.70 |
| PF050-05 | Brass piston Ø19 mm complete with rubbers for brake pump | $13.68 |
| PF051-05 | Helicoidal spring Ø19 mm for brake pump | $3.04 |
| PF052-05 | Lever complete with piston pusher for brake pump - Tropicalized | $18.16 |
| INT0276-05 | Gasket for inner oil recovery tank - for brake pump | $8.55 |
| INT0277-05 | Gasket support for inner oil recovery tank - for brake pump | $7.98 |
| INT0278-05 | Cap for inner oil recovery tank - brake pump | $18.89 |
| VT167-07 | Ø 4x12mm screw -cylindric head for brake pump | $0.08 |
| PF056-05 | Screw 5x8mm button | $0.11 |
| PP019-05 | Screw 10x1 mm for oil pipe connection | $4.33 |

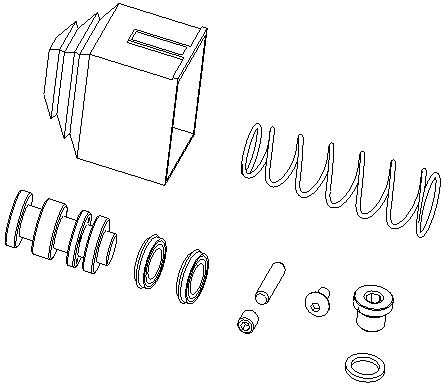

Brake Pump Repair Kit EV03ET
| CODE | DESCRIPTION | PRICE |
| FR381-06 | Spares parts KIT for brake pump INT103-05 - CIK/FIA approval | $35.34 |
| PF001-05 | Threaded cap 10x1mm - BLACK | $1.90 |
| PF002-05 | Rame washer Ø14x10x1,5 mm | $0.53 |
| PF012-05 | Centering pin 5x20 grounded | $1.06 |
| PF013-05 | Safety dowel Ø6x6 | $0.61 |
| PF015RS-05 | Outside dusty cap for Brake Pump - RED | $8.70 |
| PF050-05 | Brass piston Ø19 mm complete with rubbers for brake pump | $13.68 |
| PF051-05 | Helicoidal spring Ø19 mm for brake pump | $3.04 |
| PF056-05 | Screw 5x8mm | $0.11 |

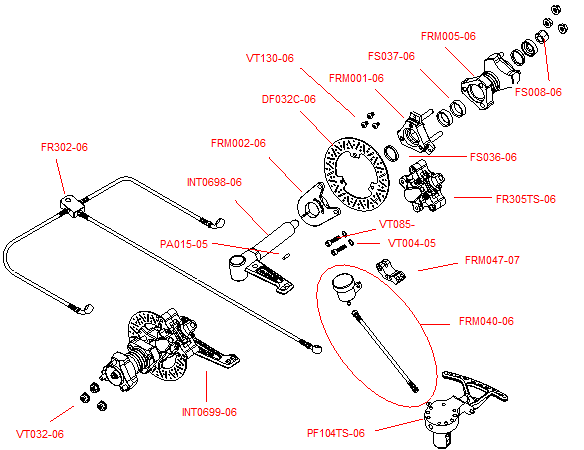

Front Manual Brake System
